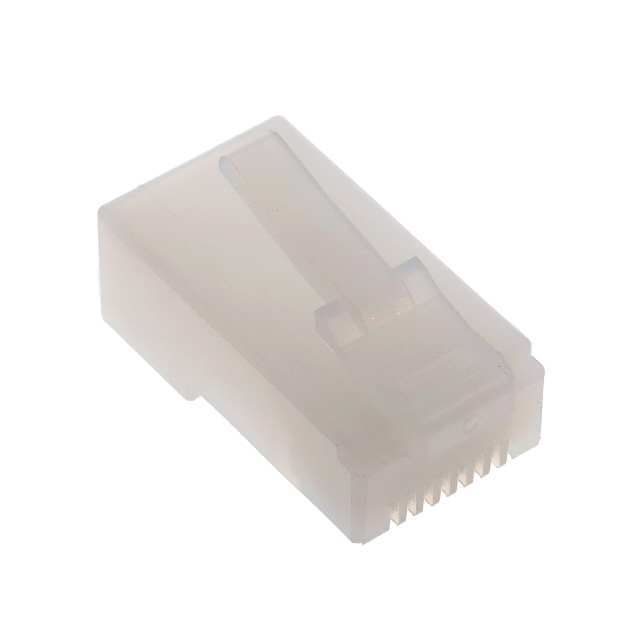

MTPR-88-W-C

Active

Adam Tech

PLUG, 8P8C, 30U PLATING, PLUG FO

Search across all available documentation for this part.

Active

Adam Tech

PLUG, 8P8C, 30U PLATING, PLUG FO

Technical Specifications

Parameters and characteristics for this part

Specification	MTPR-88-W-C

Cable Type	Flat Oval Cable, Not Specified
Color	White
Connector Type	Plug
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Copper Alloy
Length [x]	24.44 mm
Length [x]	0.962 in
Number of Positions/Contacts	8p8c (RJ45, Ethernet)
Shielding	Unshielded
Termination	IDC

Part	Cable Type	Color	Connector Type	Voltage Rating	Contact Material	Wire Gauge [Min]	Wire Gauge [Max]	Housing Material	Ratings	Shielding	Length [x]	Length [x]	Contact Finish Thickness	Termination	Number of Positions/Contacts	Contact Finish	Current Rating (Amps)	Contact Finish Thickness	Contact Finish Thickness
Adam Tech MTPR-88-X-S-C6-A	Flat Oval Cable Solid Wires	Clear	Plug	150 VAC	Copper Alloy	21 AWG	23 AWG	Polycarbonate (PC)	Cat6	Unshielded	24.44 mm	0.962 in	Flash	IDC	8p8c (RJ45 Ethernet)	Gold	1.5 A
Adam Tech MTPR-88-W-C	Flat Oval Cable Not Specified	White	Plug		Copper Alloy					Unshielded	24.44 mm	0.962 in		IDC	8p8c (RJ45 Ethernet)	Gold		0.76 Ám	30 Áin
Adam Tech MTPR-88-W-S-C6-A	Flat Oval Cable Solid Wires	Clear	Plug	150 VAC	Copper Alloy	21 AWG	23 AWG	Polycarbonate (PC)	Cat6	Unshielded	24.44 mm	0.962 in		IDC	8p8c (RJ45 Ethernet)	Gold	1.5 A	0.76 Ám	30 Áin
Adam Tech MTPR-88-X-C	Flat Oval Cable Not Specified	White	Plug		Copper Alloy					Unshielded	24.44 mm	0.962 in	Flash	IDC	8p8c (RJ45 Ethernet)	Gold
