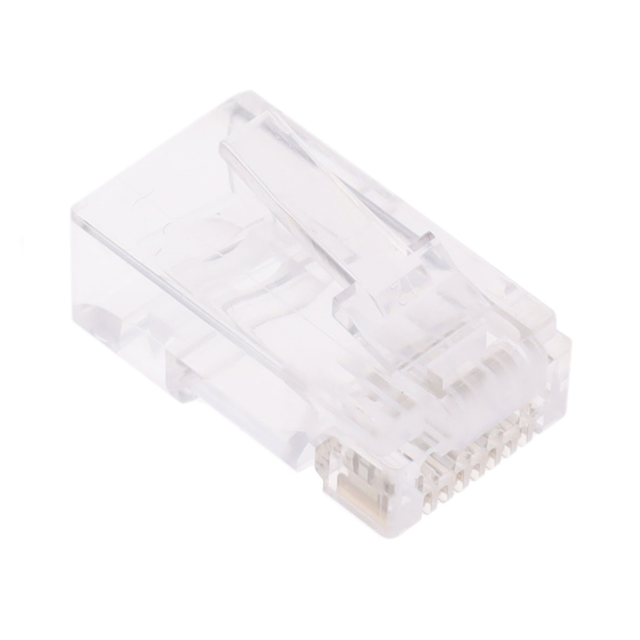

MTPR-88-X-S-C6-A

Active

Adam Tech

RJ-45 PL 8 POS CRIMP ST CABLE MOUNT

Search across all available documentation for this part.

Active

Adam Tech

RJ-45 PL 8 POS CRIMP ST CABLE MOUNT

Technical Specifications

Parameters and characteristics for this part

Specification	MTPR-88-X-S-C6-A

Cable Type	Flat Oval Cable, Solid Wires
Color	Clear
Connector Type	Plug
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Copper Alloy
Current Rating (Amps)	1.5 A
Housing Material	Polycarbonate (PC)
Length [x]	24.44 mm
Length [x]	0.962 in
Number of Positions/Contacts	8p8c (RJ45, Ethernet)
Ratings	Cat6
Shielding	Unshielded
Termination	IDC
Voltage Rating	150 VAC
Wire Gauge [Max]	23 AWG
Wire Gauge [Min]	21 AWG

Part	Cable Type	Color	Connector Type	Voltage Rating	Contact Material	Wire Gauge [Min]	Wire Gauge [Max]	Housing Material	Ratings	Shielding	Length [x]	Length [x]	Contact Finish Thickness	Termination	Number of Positions/Contacts	Contact Finish	Current Rating (Amps)	Contact Finish Thickness	Contact Finish Thickness
Adam Tech MTPR-88-X-S-C6-A	Flat Oval Cable Solid Wires	Clear	Plug	150 VAC	Copper Alloy	21 AWG	23 AWG	Polycarbonate (PC)	Cat6	Unshielded	24.44 mm	0.962 in	Flash	IDC	8p8c (RJ45 Ethernet)	Gold	1.5 A
Adam Tech MTPR-88-W-C	Flat Oval Cable Not Specified	White	Plug		Copper Alloy					Unshielded	24.44 mm	0.962 in		IDC	8p8c (RJ45 Ethernet)	Gold		0.76 Ám	30 Áin
Adam Tech MTPR-88-W-S-C6-A	Flat Oval Cable Solid Wires	Clear	Plug	150 VAC	Copper Alloy	21 AWG	23 AWG	Polycarbonate (PC)	Cat6	Unshielded	24.44 mm	0.962 in		IDC	8p8c (RJ45 Ethernet)	Gold	1.5 A	0.76 Ám	30 Áin
Adam Tech MTPR-88-X-C	Flat Oval Cable Not Specified	White	Plug		Copper Alloy					Unshielded	24.44 mm	0.962 in	Flash	IDC	8p8c (RJ45 Ethernet)	Gold
