55416.34099

Active

ebm-papst Inc.

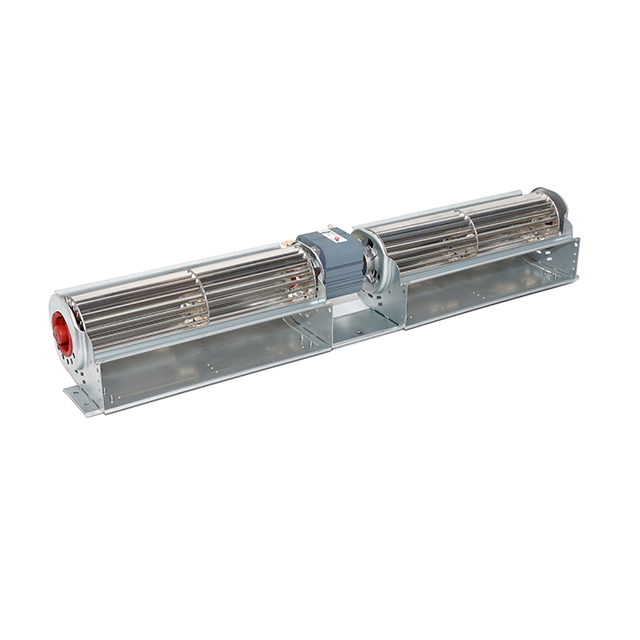

AC FAN BLOWER CROSSFLOW

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

55416.34099

Active

ebm-papst Inc.

AC FAN BLOWER CROSSFLOW

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	55416.34099

Air Flow	5.26 m³/min
Air Flow	188 CFM
Bearing Type	Sleeve
Fan Type	Blower, Cross Flow
Operating Temperature [Max]	60 °C
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	0 °C
Operating Temperature [Min]	0 °C
Power (Watts)	54 W
RPM	1050 RPM
Static Pressure	107.9 Pa
Static Pressure	0.433 in H2O
Voltage - Rated	115 VAC
Width [x]	71 mm

QLN65AC Series

Blowers & Centrifugal Fans AC CrossFlow Blower

Part	Fan Type	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [diameter]	Static Pressure	Static Pressure	Voltage - Rated	Material - Frame	Termination	Material - Blade	RPM	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Width	Power (Watts)	Air Flow	Air Flow	Bearing Type	Width [x]	Weight	Weight	Size / Dimension [custom]	Size / Dimension [y]	Noise
ebm-papst Inc. 55416.35031	Blower Cross Flow	90 mm	400 mm	65 mm	0.442 in H2O	110 Pa	115 VAC	Steel	Terminal Block	Aluminum	1400 RPM	60 °C	0 °C	0 °C	60 °C	108 mm	65 W	4.2 mł/min	150 CFM	Sleeve
ebm-papst Inc. 55416.27260	Blower Cross Flow				0.373 in H2O	93 Pa	115 VAC				1700 RPM	60 °C	0 °C	0 °C	60 °C		49 W	3.19 m³/min	114 CFM	Sleeve	71 mm
ebm-papst Inc. 55416.32130	Blower Cross Flow				0.333 in H2O	83 Pa	115 VAC	Steel	Terminal Block	Aluminum	1500 RPM	60 °C	0 °C	0 °C	60 °C		55 W	3.61 m³/min	129 CFM	Sleeve		3.2 lbs	1.5 kg
ebm-papst Inc. 55416.34099	Blower Cross Flow				0.433 in H2O	107.9 Pa	115 VAC				1050 RPM	60 °C	0 °C	0 °C	60 °C		54 W	5.26 m³/min	188 CFM	Sleeve	71 mm
ebm-papst Inc. 55416.30199
ebm-papst Inc. 55416.32080	Blower Cross Flow		605 mm				115 VAC	Steel	Terminal Block	Aluminum						108 mm	56 W	3.56 m³/min	127 CFM	Sleeve				65 mm	90 mm	46 dB(A)
ebm-papst Inc. 55416.25170	Blower Cross Flow		266 mm	65 mm	0.373 in H2O	93 Pa	115 VAC	Steel	Terminal Block	Aluminum	1700 RPM	60 °C	0 °C	0 °C	60 °C	108 mm	49 W	3.19 m³/min	114 CFM	Sleeve		2.7 lbs	1.2 kg		90 mm
ebm-papst Inc. 55416.17090	Blower Cross Flow	90 mm	196 mm	65 mm	0.2 in H2O	49.8 Pa	115 VAC	Steel	Terminal Block	Aluminum	1950 RPM	60 °C	0 °C	0 °C	60 °C	108 mm	42 W	2.07 mł/min	74 CFM	Sleeve		2 lbs	907.2 g
ebm-papst Inc. 55416.37070	Blower Cross Flow	90 mm	400 mm	65 mm	0.442 in H2O	110 Pa	115 VAC	Steel	Terminal Block	Aluminum	1400 RPM	60 °C	0 °C	0 °C	60 °C	108 mm	65 W	4.2 mł/min	150 CFM	Sleeve
ebm-papst Inc. 55416.30250	Blower Cross Flow		331 mm	65 mm	0.333 in H2O	83 Pa	115 VAC	Steel	Terminal Block	Aluminum	1500 RPM	60 °C	0 °C	0 °C	60 °C	108 mm	55 W	3.61 m³/min	129 CFM	Sleeve		3.2 lbs	1.5 kg		90 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 198.57
		10	$ 177.03
		25	$ 169.10
		50	$ 163.34

Description

General part information

QLN65AC Series

Blowers & Centrifugal Fans AC CrossFlow Blower

Documents

Technical documentation and resources
