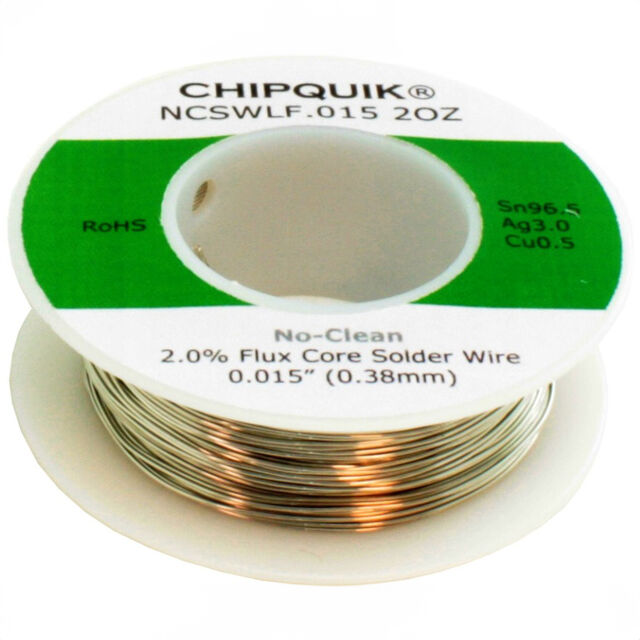

NCSWLF.015 2OZ
ActiveChip Quik Inc.
LF SOLDER WIRE 96.5/3/0.5 TIN/SI
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
NCSWLF.015 2OZ
ActiveChip Quik Inc.
LF SOLDER WIRE 96.5/3/0.5 TIN/SI
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | NCSWLF.015 2OZ |
|---|---|
| Composition | Sn96.5Ag3Cu0.5 (96.5/3/0.5) |
| Diameter [diameter] | 0.015 in |
| Diameter [diameter] | 0.38 mm |
| Flux Type | No-Clean |
| Form | Spool |
| Form | 2 oz |
| Form | 56.7 g |
| Melting Point [Max] [custom] | 220 °C |
| Melting Point [Max] [custom] | 428 °F |
| Melting Point [Min] [custom] | 423 °F |
| Melting Point [Min] [custom] | 217 °C |
| Type | Wire Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 25.08 | |
| 5 | $ 24.57 | |||
| 10 | $ 22.52 | |||
| 25 | $ 18.43 | |||
| 50 | $ 18.02 | |||
Description
General part information
NCSW Series
No-Clean Wire Solder Sn96.5Ag3Cu0.5 (96.5/3/0.5) Spool, 2 oz (56.70g)
Documents
Technical documentation and resources
