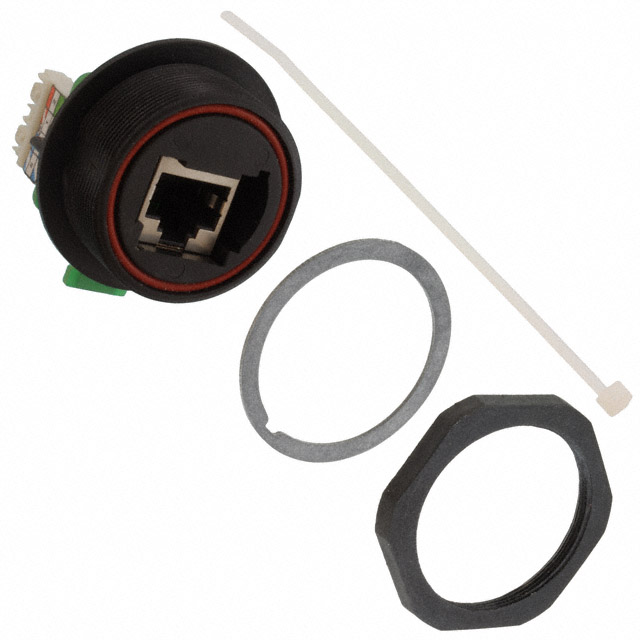

PX0839/IDC
ActiveBULGIN LIMITED
MODULAR CONNECTOR, RJ45 JACK, 1 X 1 (PORT), 8P8C, CAT5E, IP68, PANEL MOUNT
Deep-Dive with AI
Search across all available documentation for this part.
PX0839/IDC
ActiveBULGIN LIMITED
MODULAR CONNECTOR, RJ45 JACK, 1 X 1 (PORT), 8P8C, CAT5E, IP68, PANEL MOUNT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | PX0839/IDC |
|---|---|
| Connector Type | Jack |
| Contact Finish | Gold |
| Contact Finish Thickness | 50 µin |
| Contact Finish Thickness | 1.27 µm |
| Contact Material | Phosphor Bronze |
| Features | Circular Threaded Coupling |
| Housing Material | Polyethylene Terephthalate (PET), Polyester |
| Ingress Protection | IP68 - Dust Tight, Waterproof |
| LED Color | Does Not Contain LED |
| Mounting Type | Bulkhead, Panel Mount |
| Number of Ports | 1 |
| Number of Positions/Contacts | 8p8c (RJ45, Ethernet) |
| Number of Rows | 1 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -40 °C |
| Orientation | Straight |
| Ratings | Cat5e |
| Shielding | Shielded |
| Tab Direction | User Selectable |
| Termination | IDC, Color Coded Block |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
PX0839 Series
The PX0839/IDC is a CAT5e shielded RJ45 Connector, IDC blocks for discreet termination. PUR jacket on cable, good chemical and water resistance, shielded system, high noise immunity and EMI protection. Protection from abuse and mismating.
