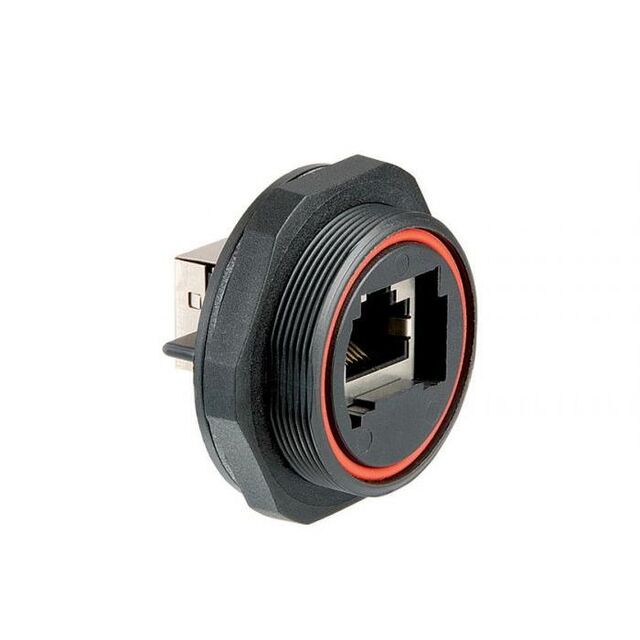

PX0839/90
ActiveBULGIN LIMITED
CONN MOD JACK 8P8C R/A SHIELDED
Deep-Dive with AI
Search across all available documentation for this part.
PX0839/90
ActiveBULGIN LIMITED
CONN MOD JACK 8P8C R/A SHIELDED
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | PX0839/90 |
|---|---|
| Connector Type | Jack |
| Contact Finish | Gold |
| Contact Finish Thickness | 50 µin |
| Contact Finish Thickness | 1.27 µm |
| Contact Material | Phosphor Bronze |
| Features | Circular Threaded Coupling |
| Housing Material | Polyethylene Terephthalate (PET), Polyester |
| Ingress Protection | IP68 - Dust Tight, Waterproof |
| LED Color | Does Not Contain LED |
| Mounting Type | Bulkhead, Panel Mount |
| Number of Ports | 1 |
| Number of Positions/Contacts | 8p8c (RJ45, Ethernet) |
| Number of Rows | 1 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -40 °C |
| Orientation | 90 ° |
| Ratings | Cat5e |
| Shielding | Shielded |
| Tab Direction | User Selectable |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 30.76 | |
| 10 | $ 26.15 | |||
| 25 | $ 24.51 | |||
| 50 | $ 23.34 | |||
| 100 | $ 22.23 | |||
| 250 | $ 20.84 | |||
Description
General part information
PX0839 Series
Jack Modular Connector 8p8c (RJ45, Ethernet) 90° Angle (Right) Shielded Cat5e
