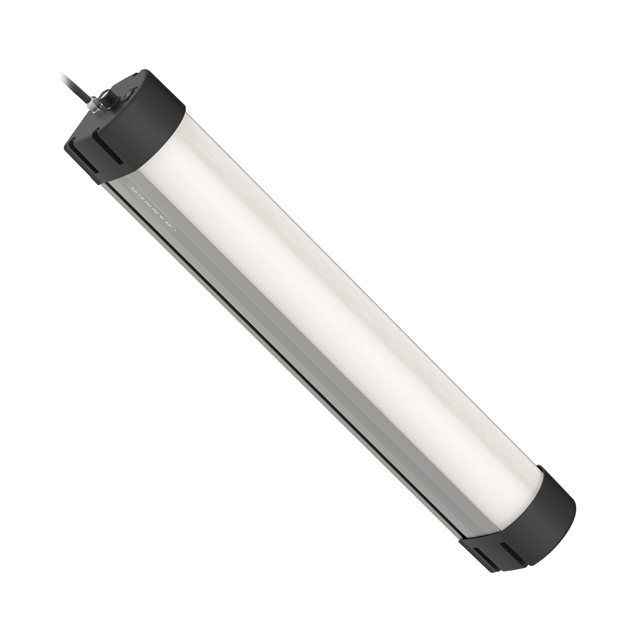

WLS28-2XWR-1130DXQ

Active

BANNER ENGINEERING

WLS28-2 DUAL COLOR LIGHT STRIP;

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

WLS28-2XWR-1130DXQ

Active

BANNER ENGINEERING

WLS28-2 DUAL COLOR LIGHT STRIP;

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	WLS28-2XWR-1130DXQ

Approval Agency	cULus, CE
Features	Cascadable
Housing Material	Aluminum (Al)
Illumination Color	White, Red
Ingress Protection	IP50
Length [x]	44.49 in
Length [x]	1130 mm
Lens Type	Flat, Diffused
Luminous Flux	1425 lm, 600 lm
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-40 °C
Profile (W x H) [x]	28 mm
Profile (W x H) [x]	1.1 in
Profile (W x H) [y]	21 mm
Profile (W x H) [y]	0.83 in
Rated Life	75000 Hours
Termination Style	Connector (M12)
Voltage - Supply [Max]	30 VDC
Voltage - Supply [Min]	12 V

WLS28 Series

...

Part	Ingress Protection	Operating Temperature [Min]	Operating Temperature [Max]	Approval Agency	Length	Length	Housing Material	Profile (W x H) [y]	Profile (W x H) [x]	Profile (W x H) [y]	Profile (W x H) [x]	Features	Luminous Flux	Illumination Color	Rated Life	Termination Style	Lens Type	Voltage - Supply [Min]	Voltage - Supply [Max]	Length [x]	Length [x]	Luminous Flux [custom]	Luminous Flux [custom]	Luminous Flux [custom]
BANNER ENGINEERING WLS28-2CW990XQ	IP50	-40 °C	70 °C	CE cULus	38.98 in	990 mm	Aluminum (Al)	21 mm	28 mm	0.83 in	1.1 in	Cascadable	2800 lm	Cool White	75000 Hours	Connector (M12)	Clear Flat	12 V	30 VDC
BANNER ENGINEERING WLS28-2CWW850DXQ	IP50	-40 °C	70 °C	CE cULus			Aluminum (Al)	21 mm	28 mm	0.83 in	1.1 in	Cascadable	2400 lm	Warm White	75000 Hours	Connector (M12)	Diffused Flat	12 V	30 VDC
BANNER ENGINEERING WLS28-2XW990XQ	IP50	-40 °C	70 °C	CE cULus	38.98 in	990 mm	Aluminum (Al)	21 mm	28 mm	0.83 in	1.1 in	Cascadable	2800 lm	Cool White	75000 Hours	Connector (M12)	Clear Flat	12 V	30 VDC
BANNER ENGINEERING WLS28-2XW990SQ	IP65 IP67 IP69K	-40 °C	70 °C	CE cULus	38.98 in	990 mm	Aluminum (Al)	21 mm	28 mm	0.83 in	1.1 in	Cascadable	2800 lm	Cool White	75000 Hours	Connector (M12)	Clear Flat	12 V	30 VDC
BANNER ENGINEERING WLS28-2XW850XQ	IP50	-40 °C	70 °C	CE cULus			Aluminum (Al)	21 mm	28 mm	0.83 in	1.1 in	Cascadable	2400 lm	Cool White	75000 Hours	Connector (M12)	Clear Flat	12 V	30 VDC
BANNER ENGINEERING WLS28-2XWR-1130DXQ	IP50	-40 °C	70 °C	CE cULus			Aluminum (Al)	21 mm	28 mm	0.83 in	1.1 in	Cascadable	600 lm 1425 lm	Red White	75000 Hours	Connector (M12)	Diffused Flat	12 V	30 VDC	44.49 in	1130 mm
BANNER ENGINEERING WLS28-2XW285XQ	IP50	-40 °C	70 °C	CE cULus			Aluminum (Al)	21 mm	28 mm	0.83 in	1.1 in	Cascadable	800 lm	Cool White	75000 Hours	Connector (M12)	Clear Flat	12 V	30 VDC
BANNER ENGINEERING WLS28-2XWGRXX3-0570X24Q	IP50	-40 °C	70 °C	CE cULus	22.44 in	570 mm	Aluminum (Al)	21 mm	28 mm	0.83 in	1.1 in	Cascadable		Green Red White	75000 Hours	Connector (M12)	Clear Flat	12 V	30 VDC			1300 lm	370 lm	800 lm
BANNER ENGINEERING WLS28-2XW850SQ	IP65 IP67 IP69K	-40 °C	70 °C	CE cULus			Aluminum (Al)	21 mm	28 mm	0.83 in	1.1 in	Cascadable	2400 lm	Cool White	75000 Hours	Connector (M12)	Clear Flat	12 V	30 VDC
BANNER ENGINEERING WLS28-2XW990DSQ	IP65 IP67 IP69K	-40 °C	70 °C	CE cULus	38.98 in	990 mm	Aluminum (Al)	21 mm	28 mm	0.83 in	1.1 in	Cascadable	2800 lm	Cool White	75000 Hours	Connector (M12)	Diffused Flat	12 V	30 VDC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 724.00
Newark	Each	1	$ 724.00

Description

General part information

WLS28 Series

WLS28-2 DUAL COLOR LIGHT STRIP;
