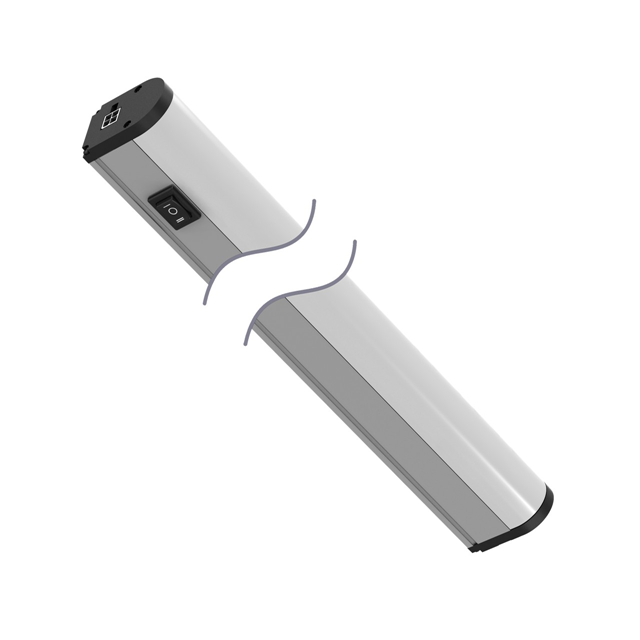

WLS28-2XWGRXX3-0570X24Q

Active

BANNER ENGINEERING

WLS28-2 MULTICOLOR LIGHT STRIP;

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

WLS28-2XWGRXX3-0570X24Q

Active

BANNER ENGINEERING

WLS28-2 MULTICOLOR LIGHT STRIP;

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	WLS28-2XWGRXX3-0570X24Q

Approval Agency	cULus, CE
Features	Cascadable
Housing Material	Aluminum (Al)
Illumination Color	Red, Green, White
Ingress Protection	IP50
Length	570 mm
Length	22.44 in
Lens Type	Flat, Clear
Luminous Flux [custom]	1300 lm
Luminous Flux [custom]	370 lm
Luminous Flux [custom]	800 lm
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-40 °C
Profile (W x H) [x]	28 mm
Profile (W x H) [x]	1.1 in
Profile (W x H) [y]	21 mm
Profile (W x H) [y]	0.83 in
Rated Life	75000 Hours
Termination Style	Connector (M12)
Voltage - Supply [Max]	30 VDC
Voltage - Supply [Min]	12 V

WLS28 Series

...

Part	Ingress Protection	Operating Temperature [Min]	Operating Temperature [Max]	Approval Agency	Length	Length	Housing Material	Profile (W x H) [y]	Profile (W x H) [x]	Profile (W x H) [y]	Profile (W x H) [x]	Features	Luminous Flux	Illumination Color	Rated Life	Termination Style	Lens Type	Voltage - Supply [Min]	Voltage - Supply [Max]	Length [x]	Length [x]	Luminous Flux [custom]	Luminous Flux [custom]	Luminous Flux [custom]
BANNER ENGINEERING WLS28-2CW990XQ	IP50	-40 °C	70 °C	CE cULus	38.98 in	990 mm	Aluminum (Al)	21 mm	28 mm	0.83 in	1.1 in	Cascadable	2800 lm	Cool White	75000 Hours	Connector (M12)	Clear Flat	12 V	30 VDC
BANNER ENGINEERING WLS28-2CWW850DXQ	IP50	-40 °C	70 °C	CE cULus			Aluminum (Al)	21 mm	28 mm	0.83 in	1.1 in	Cascadable	2400 lm	Warm White	75000 Hours	Connector (M12)	Diffused Flat	12 V	30 VDC
BANNER ENGINEERING WLS28-2XW990XQ	IP50	-40 °C	70 °C	CE cULus	38.98 in	990 mm	Aluminum (Al)	21 mm	28 mm	0.83 in	1.1 in	Cascadable	2800 lm	Cool White	75000 Hours	Connector (M12)	Clear Flat	12 V	30 VDC
BANNER ENGINEERING WLS28-2XW990SQ	IP65 IP67 IP69K	-40 °C	70 °C	CE cULus	38.98 in	990 mm	Aluminum (Al)	21 mm	28 mm	0.83 in	1.1 in	Cascadable	2800 lm	Cool White	75000 Hours	Connector (M12)	Clear Flat	12 V	30 VDC
BANNER ENGINEERING WLS28-2XW850XQ	IP50	-40 °C	70 °C	CE cULus			Aluminum (Al)	21 mm	28 mm	0.83 in	1.1 in	Cascadable	2400 lm	Cool White	75000 Hours	Connector (M12)	Clear Flat	12 V	30 VDC
BANNER ENGINEERING WLS28-2XWR-1130DXQ	IP50	-40 °C	70 °C	CE cULus			Aluminum (Al)	21 mm	28 mm	0.83 in	1.1 in	Cascadable	600 lm 1425 lm	Red White	75000 Hours	Connector (M12)	Diffused Flat	12 V	30 VDC	44.49 in	1130 mm
BANNER ENGINEERING WLS28-2XW285XQ	IP50	-40 °C	70 °C	CE cULus			Aluminum (Al)	21 mm	28 mm	0.83 in	1.1 in	Cascadable	800 lm	Cool White	75000 Hours	Connector (M12)	Clear Flat	12 V	30 VDC
BANNER ENGINEERING WLS28-2XWGRXX3-0570X24Q	IP50	-40 °C	70 °C	CE cULus	22.44 in	570 mm	Aluminum (Al)	21 mm	28 mm	0.83 in	1.1 in	Cascadable		Green Red White	75000 Hours	Connector (M12)	Clear Flat	12 V	30 VDC			1300 lm	370 lm	800 lm
BANNER ENGINEERING WLS28-2XW850SQ	IP65 IP67 IP69K	-40 °C	70 °C	CE cULus			Aluminum (Al)	21 mm	28 mm	0.83 in	1.1 in	Cascadable	2400 lm	Cool White	75000 Hours	Connector (M12)	Clear Flat	12 V	30 VDC
BANNER ENGINEERING WLS28-2XW990DSQ	IP65 IP67 IP69K	-40 °C	70 °C	CE cULus	38.98 in	990 mm	Aluminum (Al)	21 mm	28 mm	0.83 in	1.1 in	Cascadable	2800 lm	Cool White	75000 Hours	Connector (M12)	Diffused Flat	12 V	30 VDC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 355.00
Newark	Each	1	$ 355.00

Description

General part information

WLS28 Series

WLS28-2 MULTICOLOR LIGHT STRIP;
