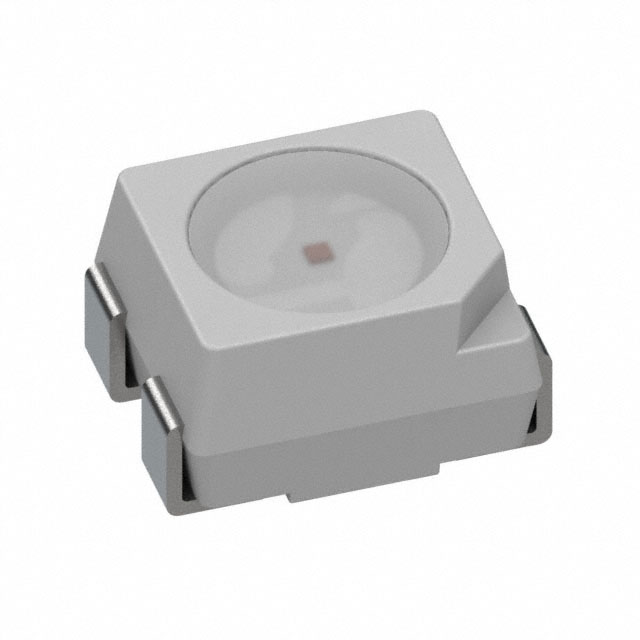

HSMZ-A400-V30M1
ActiveBroadcom Limited
LED, RED, 630NM, 120DEG ROHS COMPLIANT: YES
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
HSMZ-A400-V30M1
ActiveBroadcom Limited
LED, RED, 630NM, 120DEG ROHS COMPLIANT: YES
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | HSMZ-A400-V30M1 |
|---|---|
| Color | Red |
| Configuration | Standard |
| Current - Test | 50 mA |
| Height (Max) [Max] [z] | 2.1 mm |
| Lens Color | Colorless |
| Lens Size [diameter] | 2.2 mm |
| Lens Transparency | Clear |
| Mounting Type | Surface Mount |
| Package / Case | 4-PLCC |
| Size / Dimension [x] | 3.2 mm |
| Size / Dimension [y] | 2.8 mm |
| Supplier Device Package | 4-PLCC |
| Viewing Angle | 120 ° |
| Voltage - Forward (Vf) (Typ) | 2.8 V |
| Wavelength - Dominant | 630 nm |
| Wavelength - Peak | 639 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.86 | |
| 10 | $ 0.52 | |||
| 100 | $ 0.35 | |||
| 500 | $ 0.28 | |||
| 1000 | $ 0.26 | |||
| Digi-Reel® | 1 | $ 0.86 | ||
| 10 | $ 0.52 | |||
| 100 | $ 0.35 | |||
| 500 | $ 0.28 | |||
| 1000 | $ 0.26 | |||
| Tape & Reel (TR) | 2000 | $ 0.24 | ||
| 4000 | $ 0.23 | |||
| 6000 | $ 0.22 | |||
| 10000 | $ 0.21 | |||
| 14000 | $ 0.21 | |||
| 20000 | $ 0.20 | |||
| 50000 | $ 0.19 | |||
| Newark | Each (Supplied on Full Reel) | 2000 | $ 0.24 | |
| 4000 | $ 0.23 | |||
| 8000 | $ 0.23 | |||
| 12000 | $ 0.22 | |||
| 20000 | $ 0.21 | |||
Description
General part information
HSMZ-A400 Series
Red 630nm LED Indication - Discrete 2.8V 4-PLCC
