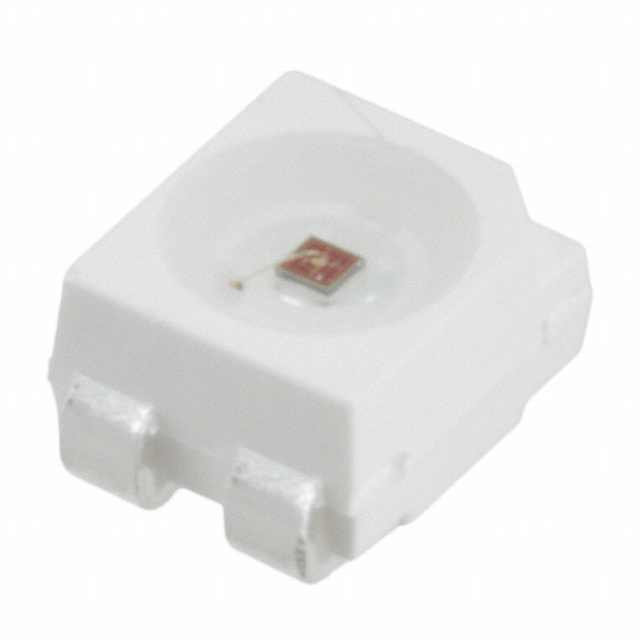

HSMZ-A400-U80M1
ObsoleteBroadcom Limited
LED RED CLEAR 4PLCC SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
HSMZ-A400-U80M1
ObsoleteBroadcom Limited
LED RED CLEAR 4PLCC SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | HSMZ-A400-U80M1 |
|---|---|
| Color | Red |
| Configuration | Standard |
| Current - Test | 50 mA |
| Height (Max) [Max] [z] | 2.1 mm |
| Lens Color | Colorless |
| Lens Size [diameter] | 2.2 mm |
| Lens Transparency | Clear |
| Mounting Type | Surface Mount |
| Package / Case | 4-PLCC |
| Size / Dimension [x] | 3.2 mm |
| Size / Dimension [y] | 2.8 mm |
| Supplier Device Package | 4-PLCC |
| Viewing Angle | 120 ° |
| Voltage - Forward (Vf) (Typ) | 2.8 V |
| Wavelength - Dominant | 630 nm |
| Wavelength - Peak | 639 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
HSMZ-A400 Series
Red 630nm LED Indication - Discrete 2.8V 4-PLCC
