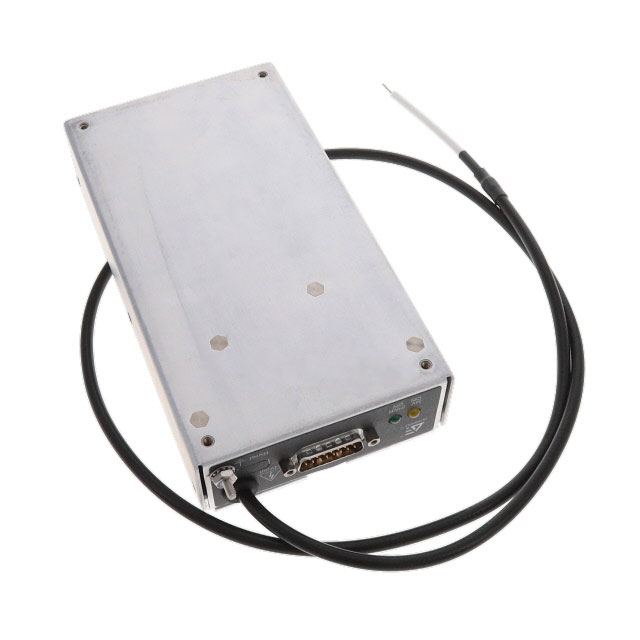

20LE24-P30
ActiveULTRAVOLT / Advanced Energy
DC/DC CONVERTER 20000V 30W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
20LE24-P30
ActiveULTRAVOLT / Advanced Energy
DC/DC CONVERTER 20000V 30W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 20LE24-P30 |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | CE, cURus |
| Current - Output (Max) [Max] | 1.5 mA |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 45 °C |
| Operating Temperature [Min] | 10 °C |
| Power (Watts) | 30 W |
| Size / Dimension [x] | 184.9 mm |
| Size / Dimension [x] | 7.28 in |
| Size / Dimension [y] | 100 mm |
| Size / Dimension [y] | 3.94 in |
| Size / Dimension [z] | 38.1 mm |
| Size / Dimension [z] | 1.5 " |
| Standard Number | 62368-1 |
| Type | Enclosed, High Voltage |
| Voltage - Input (Max) [Max] | 30 V |
| Voltage - Input (Min) [Min] | 23 V |
| Voltage - Output 1 | 20000 V |
20LE24 Series
| Part | Standard Number | Type | Mounting Type | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Number of Outputs | Power (Watts) | Voltage - Output 1 | Current - Output (Max) [Max] | Operating Temperature [Min] | Operating Temperature [Max] | Voltage - Input (Max) [Max] | Approval Agency | Voltage - Input (Min) [Min] | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
ULTRAVOLT / Advanced Energy | 62368-1 | Enclosed High Voltage | Chassis Mount | 100 mm | 38.1 mm | 184.9 mm | 3.94 in | 7.28 in | 1.5 " | 1 | 4 W | 20000 V | 200 µA | 10 °C | 45 °C | 30 V | CE cURus | 23 V | ITE (Commercial) |
ULTRAVOLT / Advanced Energy | 62368-1 | Enclosed High Voltage | Chassis Mount | 100 mm | 38.1 mm | 184.9 mm | 3.94 in | 7.28 in | 1.5 " | 1 | 30 W | 20000 V | 1.5 mA | 10 °C | 45 °C | 30 V | CE cURus | 23 V | ITE (Commercial) |
ULTRAVOLT / Advanced Energy | 62368-1 | Enclosed High Voltage | Chassis Mount | 100 mm | 38.1 mm | 184.9 mm | 3.94 in | 7.28 in | 1.5 " | 1 | 4 W | 20000 V | 200 µA | 10 °C | 45 °C | 30 V | CE cURus | 23 V | ITE (Commercial) |
ULTRAVOLT / Advanced Energy | 62368-1 | Enclosed High Voltage | Chassis Mount | 100 mm | 38.1 mm | 184.9 mm | 3.94 in | 7.28 in | 1.5 " | 1 | 15 W | 20000 V | 750 µA | 10 °C | 45 °C | 30 V | CE cURus | 23 V | ITE (Commercial) |
ULTRAVOLT / Advanced Energy | 62368-1 | Enclosed High Voltage | Chassis Mount | 100 mm | 38.1 mm | 184.9 mm | 3.94 in | 7.28 in | 1.5 " | 1 | 4 W | 20000 V | 200 µA | 10 °C | 45 °C | 30 V | CE cURus | 23 V | ITE (Commercial) |
ULTRAVOLT / Advanced Energy | 62368-1 | Enclosed High Voltage | Chassis Mount | 100 mm | 38.1 mm | 184.9 mm | 3.94 in | 7.28 in | 1.5 " | 1 | 30 W | 20000 V | 1.5 mA | 10 °C | 45 °C | 30 V | CE cURus | 23 V | ITE (Commercial) |
ULTRAVOLT / Advanced Energy | 62368-1 | Enclosed High Voltage | Chassis Mount | 100 mm | 38.1 mm | 184.9 mm | 3.94 in | 7.28 in | 1.5 " | 1 | 15 W | 20000 V | 750 µA | 10 °C | 45 °C | 30 V | CE cURus | 23 V | ITE (Commercial) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1457.73 | |
| 5 | $ 1432.60 | |||
Description
General part information
20LE24 Series
Enclosed, High Voltage DC DC Converter 1 Output 20000V 1.5mA 30V Input
