20LE24-N30

Active

ULTRAVOLT / Advanced Energy

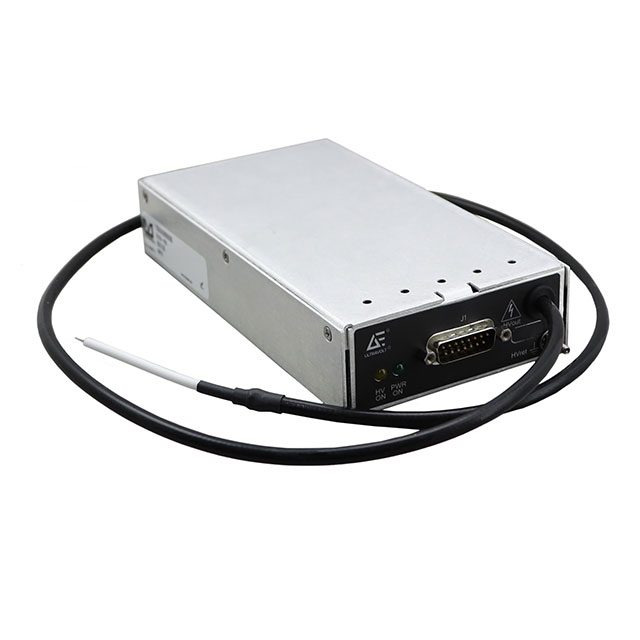

DC/DC CONVERTER 20000V 30W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

20LE24-N30

Active

ULTRAVOLT / Advanced Energy

DC/DC CONVERTER 20000V 30W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	20LE24-N30

Applications	ITE (Commercial)
Approval Agency	CE, cURus
Current - Output (Max) [Max]	1.5 mA
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	45 °C
Operating Temperature [Min]	10 °C
Power (Watts)	30 W
Size / Dimension [x]	184.9 mm
Size / Dimension [x]	7.28 in
Size / Dimension [y]	100 mm
Size / Dimension [y]	3.94 in
Size / Dimension [z]	38.1 mm
Size / Dimension [z]	1.5 "
Standard Number	62368-1
Type	Enclosed, High Voltage
Voltage - Input (Max) [Max]	30 V
Voltage - Input (Min) [Min]	23 V
Voltage - Output 1	20000 V

20LE24 Series

Part	Standard Number	Type	Mounting Type	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Number of Outputs	Power (Watts)	Voltage - Output 1	Current - Output (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Input (Max) [Max]	Approval Agency	Voltage - Input (Min) [Min]	Applications
ULTRAVOLT / Advanced Energy 20LE24-N4	62368-1	Enclosed High Voltage	Chassis Mount	100 mm	38.1 mm	184.9 mm	3.94 in	7.28 in	1.5 "	1	4 W	20000 V	200 µA	10 °C	45 °C	30 V	CE cURus	23 V	ITE (Commercial)
ULTRAVOLT / Advanced Energy 20LE24-N30	62368-1	Enclosed High Voltage	Chassis Mount	100 mm	38.1 mm	184.9 mm	3.94 in	7.28 in	1.5 "	1	30 W	20000 V	1.5 mA	10 °C	45 °C	30 V	CE cURus	23 V	ITE (Commercial)
ULTRAVOLT / Advanced Energy 20LE24-P4	62368-1	Enclosed High Voltage	Chassis Mount	100 mm	38.1 mm	184.9 mm	3.94 in	7.28 in	1.5 "	1	4 W	20000 V	200 µA	10 °C	45 °C	30 V	CE cURus	23 V	ITE (Commercial)
ULTRAVOLT / Advanced Energy 20LE24-N15	62368-1	Enclosed High Voltage	Chassis Mount	100 mm	38.1 mm	184.9 mm	3.94 in	7.28 in	1.5 "	1	15 W	20000 V	750 µA	10 °C	45 °C	30 V	CE cURus	23 V	ITE (Commercial)
ULTRAVOLT / Advanced Energy 20LE24-P4-AZ	62368-1	Enclosed High Voltage	Chassis Mount	100 mm	38.1 mm	184.9 mm	3.94 in	7.28 in	1.5 "	1	4 W	20000 V	200 µA	10 °C	45 °C	30 V	CE cURus	23 V	ITE (Commercial)
ULTRAVOLT / Advanced Energy 20LE24-P30	62368-1	Enclosed High Voltage	Chassis Mount	100 mm	38.1 mm	184.9 mm	3.94 in	7.28 in	1.5 "	1	30 W	20000 V	1.5 mA	10 °C	45 °C	30 V	CE cURus	23 V	ITE (Commercial)
ULTRAVOLT / Advanced Energy 20LE24-P15	62368-1	Enclosed High Voltage	Chassis Mount	100 mm	38.1 mm	184.9 mm	3.94 in	7.28 in	1.5 "	1	15 W	20000 V	750 µA	10 °C	45 °C	30 V	CE cURus	23 V	ITE (Commercial)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1496.57
		5	$ 1410.87

Description

General part information

20LE24 Series

Enclosed, High Voltage DC DC Converter 1 Output 20000V 1.5mA 30V Input
