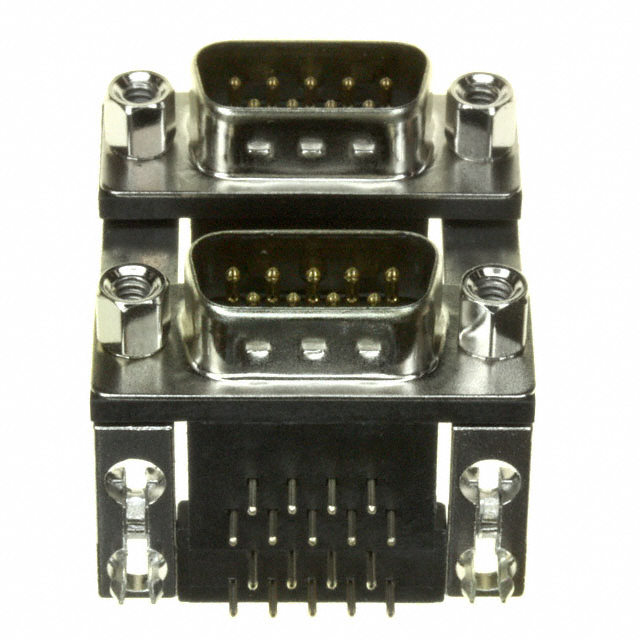

179-009-613R671
ActiveMH Connectors
STACKED D SUB CONNECTOR, 179 SERIES, DE, PLUG, 9 CONTACTS, DE, PLUG
Deep-Dive with AI
Search across all available documentation for this part.
179-009-613R671
ActiveMH Connectors
STACKED D SUB CONNECTOR, 179 SERIES, DE, PLUG, 9 CONTACTS, DE, PLUG
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 179-009-613R671 |
|---|---|
| Backset Spacing | 8.08 mm |
| Backset Spacing | 0.318 " |
| Color | Black |
| Connector Style | D-Sub - Stacked |
| Connector Type | Plug, Male Pins |
| Contact Finish | Gold |
| Contact Finish Thickness | Flash |
| Contact Form | Stamped |
| Contact Material | Brass |
| Contact Type | Signal |
| Current Rating (Amps) | 5 A |
| Dielectric Material | Polyamide (PA9T), Nylon 9T |
| Features | Board Lock, Shielded, Grounding Indents |
| Flange Feature | Female Screwlock (4-40), Mating Side |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle, Board Edge |
| Number of Positions | 9 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -55 °C |
| Shell Material, Finish | Nickel Plated, Steel |
| Shell Size, Connector Layout | 1 (DE, E) |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
179-009 Series
9, 9 Position D-Sub - Stacked Plug, Male Pins Connector
