0393800103
ActiveMolex

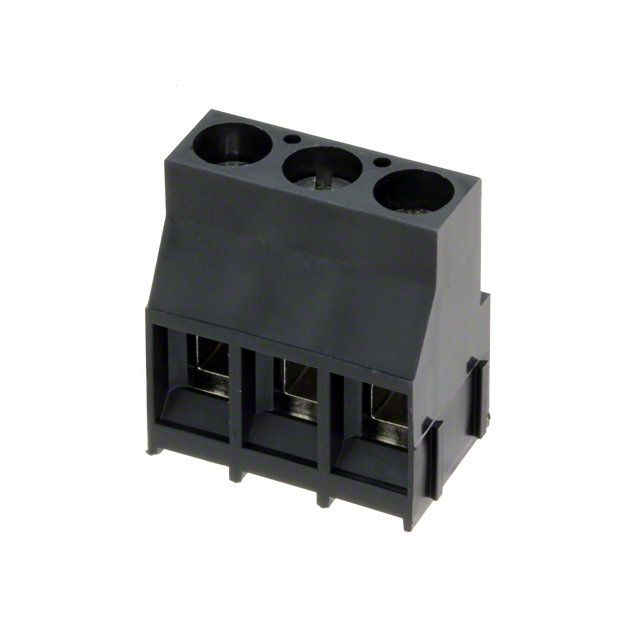

TERM BLK 3P SIDE ENT 6.35MM PCB
Deep-Dive with AI
Search across all available documentation for this part.
0393800103
ActiveMolex
TERM BLK 3P SIDE ENT 6.35MM PCB
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 0393800103 |
|---|---|
| Clamp Material - Plating | Copper Alloy - Nickel Plated |
| Color | Black |
| Contact Material - Plating | Copper Alloy - Tin Plated |
| Current | 30 A |
| Features | Interlocking (Side) |
| Mating Orientation | Horizontal with Board |
| Mounting Type | Through Hole |
| Number of Levels | 1 |
| Operating Temperature | 110 °C |
| Pitch [x] | 0.25 in |
| Pitch [x] | 6.35 mm |
| Positions Per Level | 3 |
| Screw Material - Plating | Copper Alloy - Nickel Plated |
| Screw Thread | M3.5 |
| Voltage | 300 V |
| Wire Gauge [Max] | 30 AWG |
| Wire Gauge [Min] | 10 AWG |
| Wire Termination | Screw |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.54 | |
| 10 | $ 1.17 | |||
| 25 | $ 1.08 | |||
| 50 | $ 0.97 | |||
| 100 | $ 0.95 | |||
| 480 | $ 0.84 | |||
Description
General part information
039380 Series
3 Position Wire to Board Terminal Block Horizontal with Board 0.250" (6.35mm) Through Hole
