0393800102
ActiveMolex

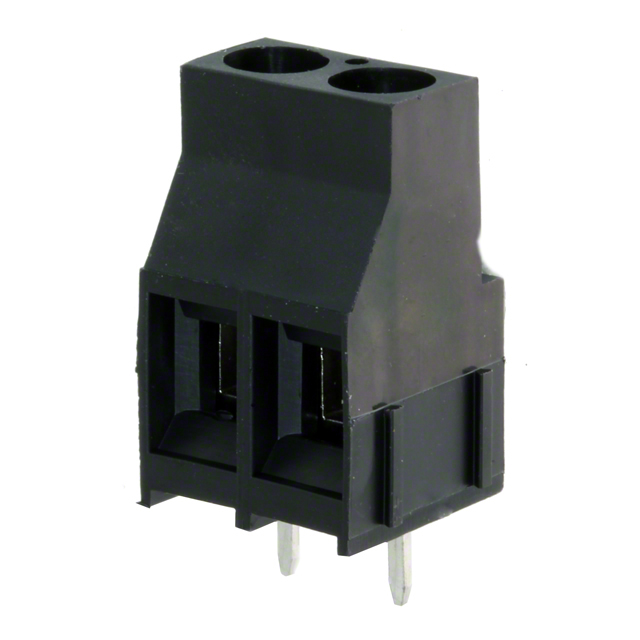

TERM BLK 2P SIDE ENT 6.35MM PCB
Deep-Dive with AI
Search across all available documentation for this part.
0393800102
ActiveMolex
TERM BLK 2P SIDE ENT 6.35MM PCB
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 0393800102 |
|---|---|
| Clamp Material - Plating | Copper Alloy - Nickel Plated |
| Color | Black |
| Contact Material - Plating | Copper Alloy - Tin Plated |
| Current | 30 A |
| Features | Interlocking (Side) |
| Mating Orientation | Horizontal with Board |
| Mounting Type | Through Hole |
| Number of Levels | 1 |
| Operating Temperature | 110 °C |
| Pitch [x] | 0.25 in |
| Pitch [x] | 6.35 mm |
| Positions Per Level | 2 |
| Screw Material - Plating | Copper Alloy - Nickel Plated |
| Screw Thread | M3.5 |
| Voltage | 300 V |
| Wire Gauge [Max] | 30 AWG |
| Wire Gauge [Min] | 10 AWG |
| Wire Termination | Screw |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 1.72 | |
| 10 | $ 1.21 | |||
| 25 | $ 1.12 | |||
| 40 | $ 1.02 | |||
| 90 | $ 1.02 | |||
| 270 | $ 0.86 | |||
| 450 | $ 0.81 | |||
| 990 | $ 0.72 | |||
| 4950 | $ 0.59 | |||
Description
General part information
039380 Series
2 Position Wire to Board Terminal Block Horizontal with Board 0.250" (6.35mm) Through Hole
