M430F5438AQGCARET
ActiveEXTENDED TEMPERATURE 25-MHZ MCU WITH 256-KB FLASH, 16-KB SRAM, 12-BIT ADC, DMA, UART/SPI/I2C, TIMER
Deep-Dive with AI
Search across all available documentation for this part.
M430F5438AQGCARET
ActiveEXTENDED TEMPERATURE 25-MHZ MCU WITH 256-KB FLASH, 16-KB SRAM, 12-BIT ADC, DMA, UART/SPI/I2C, TIMER
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | M430F5438AQGCARET |
|---|---|
| Connectivity | SCI, I2C, LINbus, SPI, UART/USART, IrDA |
| Core Processor | MSP430 |
| Core Size | 16-Bit |
| Data Converters [custom] | 16 |
| Data Converters [custom] | 12 b |
| Mounting Type | Surface Mount |
| Number of I/O | 87 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Oscillator Type | Internal |

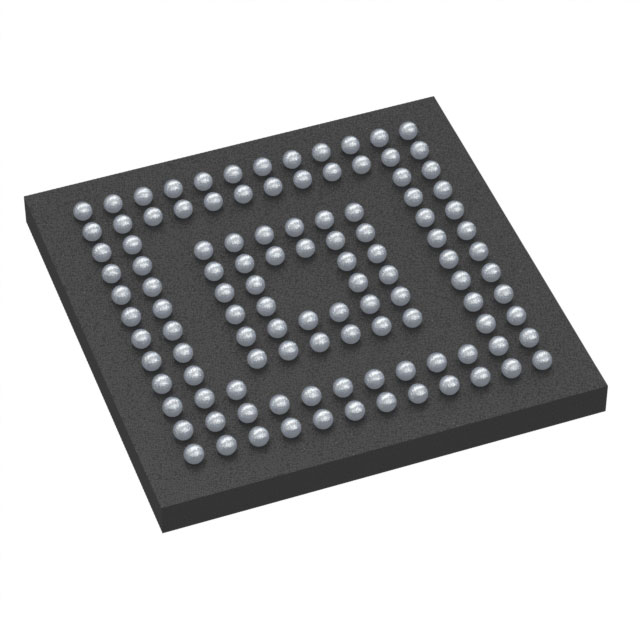

| Package / Case | 113-VFBGA |
| Peripherals | Brown-out Detect/Reset, DMA, POR, WDT, PWM |
| Program Memory Size | 256 KB |
| Program Memory Type | FLASH |
| RAM Size | 16 K |
| Speed | 25 MHz |
| Supplier Device Package | 113-NFBGA (7x7) |
| Voltage - Supply (Vcc/Vdd) [Max] | 3.6 V |
| Voltage - Supply (Vcc/Vdd) [Min] | 1.8 V |
MSP430FR5989-EP Series
Extended temperature 25-MHz MCU with 256-KB flash, 16-KB SRAM, 12-bit ADC, DMA, UART/SPI/I2C, timer
| Part | Package / Case | Program Memory Size | Mounting Type | Voltage - Supply (Vcc/Vdd) [Min] | Voltage - Supply (Vcc/Vdd) [Max] | Number of I/O | Core Processor | Operating Temperature [Max] | Operating Temperature [Min] | Connectivity | Core Size | RAM Size | Supplier Device Package | Data Converters [custom] | Data Converters [custom] | Speed | Peripherals | Program Memory Type | Oscillator Type | Data Converters [custom] | Data Converters [custom] | Operating Temperature [Max] | Operating Temperature [Min] | RAM Size | Data Converters |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Texas Instruments | 113-VFBGA | 256 KB | Surface Mount | 1.8 V | 3.6 V | 87 | CPUXV2 | 125 °C | -55 °C | I2C IrDA LINbus SCI SPI UART/USART | 16-Bit | 16 K | 113-BGA Microstar Junior (7x7) | 16 | 12 b | 25 MHz | Brown-out Detect/Reset DMA POR PWM WDT | FLASH | Internal | ||||||
Texas Instruments | 113-VFBGA | Surface Mount | 113-BGA Microstar Junior (7x7) | ||||||||||||||||||||||
Texas Instruments | 40-VFQFN Exposed Pad | 16 KB | Surface Mount | 2 V | 3.6 V | 32 | MSP430 | I2C IrDA LINbus SCI SPI UART/USART | 16-Bit | 1 K | 40-VQFN (6x6) | 24 MHz | FRAM | Internal | 10 b | 14 | 85 C | -55 C | |||||||
Texas Instruments | 113-VFBGA | 256 KB | Surface Mount | 1.8 V | 3.6 V | 87 | MSP430 | I2C IrDA LINbus SCI SPI UART/USART | 16-Bit | 16 K | 113-NFBGA (7x7) | 16 | 12 b | 25 MHz | Brown-out Detect/Reset DMA POR PWM WDT | FLASH | Internal | 125 °C | -40 °C | ||||||
Texas Instruments | 64-VFQFN Exposed Pad | 128 KB | Surface Mount | 1.8 V | 3.6 V | 48 | CPUXV2 | I2C IrDA SPI UART/USART | 16-Bit | 64-VQFN (9x9) | 16 MHz | Brown-out Detect/Reset DMA POR PWM WDT | FRAM | Internal | 105 °C | -40 °C | 2K x 8 | 12x12b | |||||||
Texas Instruments | 40-VFQFN Exposed Pad | 16 KB | Surface Mount | 2 V | 3.6 V | 32 | MSP430 | I2C IrDA LINbus SCI SPI UART/USART | 16-Bit | 1 K | 40-VQFN (6x6) | 24 MHz | FRAM | Internal | 10 b | 14 | 85 C | -55 C | |||||||
Texas Instruments | 113-VFBGA | 256 KB | Surface Mount | 1.8 V | 3.6 V | 87 | MSP430 | 125 °C | -55 °C | I2C IrDA LINbus SCI SPI UART/USART | 16-Bit | 16 K | 113-NFBGA (7x7) | 16 | 12 b | 25 MHz | Brown-out Detect/Reset DMA POR PWM WDT | FLASH | External Internal | ||||||
Texas Instruments | 113-VFBGA | 256 KB | Surface Mount | 1.8 V | 3.6 V | 87 | MSP430 | 125 °C | -55 °C | I2C IrDA LINbus SCI SPI UART/USART | 16-Bit | 16 K | 113-NFBGA (7x7) | 16 | 12 b | 25 MHz | Brown-out Detect/Reset DMA POR PWM WDT | FLASH | Internal | ||||||
Texas Instruments | 113-VFBGA | 256 KB | Surface Mount | 1.8 V | 3.6 V | 87 | CPUXV2 | I2C IrDA LINbus SCI SPI UART/USART | 16-Bit | 16 K | 113-BGA Microstar Junior (7x7) | 16 | 12 b | 25 MHz | Brown-out Detect/Reset DMA POR PWM WDT | FLASH | Internal | 125 °C | -40 °C | ||||||
Texas Instruments | 64-VFQFN Exposed Pad | 128 KB | Surface Mount | 1.8 V | 3.6 V | 48 | CPUXV2 | I2C IrDA SPI UART/USART | 16-Bit | 64-VQFN (9x9) | 16 MHz | Brown-out Detect/Reset DMA POR PWM WDT | FRAM | Internal | 95 °C | -55 C | 2K x 8 | 12x12b |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 2500 | $ 5.50 | |
| Texas Instruments | LARGE T&R | 1 | $ 7.71 | |
| 100 | $ 6.28 | |||
| 250 | $ 4.94 | |||
| 1000 | $ 4.19 | |||
Description
General part information
MSP430FR5989-EP Series
The MSP430F5438A-ET is an ultralow-power microcontroller. The architecture, combined with extensive low-power modes, is optimized to achieve extended battery life in portable measurement applications. The device features a powerful 16-bit RISC CPU, 16-bit registers, and constant generators that contribute to maximum code efficiency. The digitally controlled oscillator (DCO) allows wake-up from low-power modes to active mode in 3.5 µs (typical).
The MSP430F5438A-ET is a microcontroller configuration with three 16-bit timers, a high-performance 12-bit analog-to-digital converter (ADC), up to 4 universal serial communication interfaces (USCIs), a hardware multiplier, a DMA, a real-time clock (RTC) module with alarm capabilities, and up to 87 I/O pins. For complete module descriptions, see theMSP430F5xx and MSP430F6xx Family User’s Guide.
Typical applications for this device include analog and digital sensor systems, digital motor control, remote controls, thermostats, digital timers, and hand-held meters.
