V62/14644-01XE
ActiveMSP430FR5739 24 MHZ ULP MICROCONTROLLER WITH 16 KB FRAM, 1 KB SRAM, 32 IO, 10-BIT ADC & COMPARATOR
Deep-Dive with AI
Search across all available documentation for this part.
V62/14644-01XE
ActiveMSP430FR5739 24 MHZ ULP MICROCONTROLLER WITH 16 KB FRAM, 1 KB SRAM, 32 IO, 10-BIT ADC & COMPARATOR
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | V62/14644-01XE |
|---|---|
| Connectivity | SCI, I2C, LINbus, SPI, UART/USART, IrDA |
| Core Processor | MSP430 |
| Core Size | 16-Bit |
| Data Converters [custom] | 10 b |
| Data Converters [custom] | 14 |
| Mounting Type | Surface Mount |
| Number of I/O | 32 |
| Operating Temperature [Max] | 85 C |
| Operating Temperature [Min] | -55 C |
| Oscillator Type | Internal |

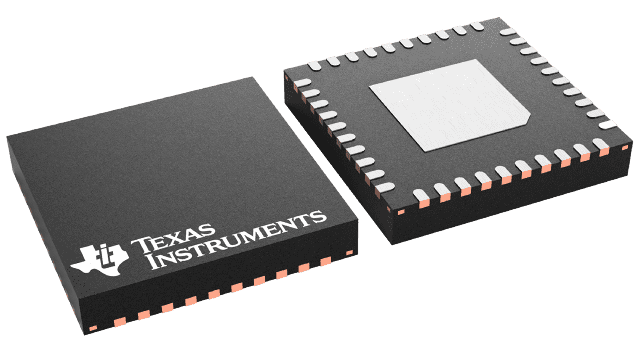

| Package / Case | 40-VFQFN Exposed Pad |
| Program Memory Size | 16 KB |
| Program Memory Type | FRAM |
| RAM Size | 1 K |
| Speed | 24 MHz |
| Supplier Device Package | 40-VQFN (6x6) |
| Voltage - Supply (Vcc/Vdd) [Max] | 3.6 V |
| Voltage - Supply (Vcc/Vdd) [Min] | 2 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Texas Instruments | SMALL T&R | 1 | $ 6.25 | |
| 100 | $ 5.10 | |||
| 250 | $ 4.00 | |||
| 1000 | $ 3.40 | |||
Description
General part information
MSP430FR5989-EP Series
The MSP430F5438A-ET is an ultralow-power microcontroller. The architecture, combined with extensive low-power modes, is optimized to achieve extended battery life in portable measurement applications. The device features a powerful 16-bit RISC CPU, 16-bit registers, and constant generators that contribute to maximum code efficiency. The digitally controlled oscillator (DCO) allows wake-up from low-power modes to active mode in 3.5 µs (typical).
The MSP430F5438A-ET is a microcontroller configuration with three 16-bit timers, a high-performance 12-bit analog-to-digital converter (ADC), up to 4 universal serial communication interfaces (USCIs), a hardware multiplier, a DMA, a real-time clock (RTC) module with alarm capabilities, and up to 87 I/O pins. For complete module descriptions, see theMSP430F5xx and MSP430F6xx Family User’s Guide.
Typical applications for this device include analog and digital sensor systems, digital motor control, remote controls, thermostats, digital timers, and hand-held meters.
Documents
Technical documentation and resources
