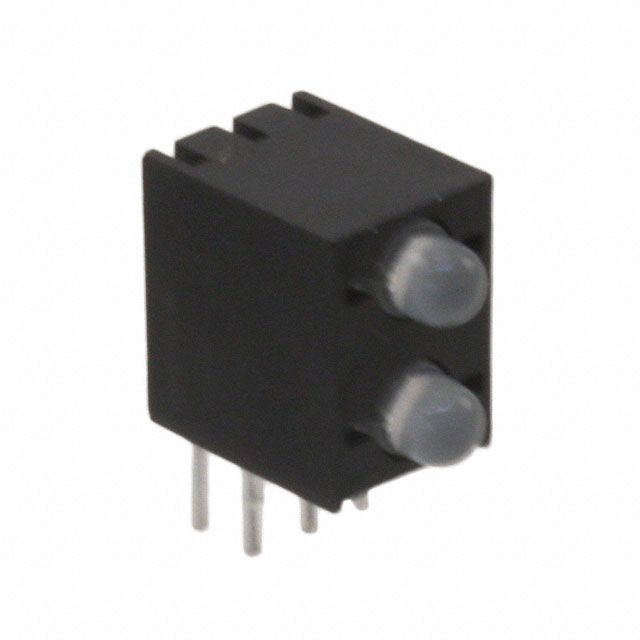

WP130WCP/2EGW

Active

Kingbright

DUAL COLOR LED ARRAY, HIGH EFFICIENCY RED/GREEN, DIFFUSED WHITE, T-1, 3MM, ROHS COMPLIANT PACKAGE-6

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

WP130WCP/2EGW

Active

Kingbright

DUAL COLOR LED ARRAY, HIGH EFFICIENCY RED/GREEN, DIFFUSED WHITE, T-1, 3MM, ROHS COMPLIANT PACKAGE-6

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	WP130WCP/2EGW

Color	Red, Green
Configuration	2 High
Lens Size	3 mm
Lens Size	T-1
Lens Style	Round with Domed Top
Lens Type	Diffused, White
Millicandela Rating	21 mcd
Mounting Type	Through Hole, Right Angle
Viewing Angle	60 °
Voltage Rating	2.2 V, 2 V
Wavelength - Peak	568 nm, 625 nm

WP130 Series

Part	Viewing Angle	Wavelength - Peak [custom]	Voltage Rating	Configuration	Millicandela Rating	Current [custom]	Current [custom]	Lens Type	Mounting Type	Lens Size	Lens Size	Color	Lens Style	Voltage Rating	Current	Package / Case	Size / Dimension [y]	Size / Dimension [x]	Voltage - Forward (Vf) (Typ)	Wavelength - Dominant [custom]	Lens Color	Height (Max) [Max] [z]	Lens Transparency	Supplier Device Package	Current - Test	Wavelength - Peak
Kingbright WP130WDT/EYW	60 °	590 nm 627 nm	2.1V Yellow 2V Red	Single	20 mcd 24 mcd	30 mA	30 mA	Diffused White	Through Hole Right Angle	3 mm	T-1	Red Yellow	Round with Domed Top
Kingbright WP130WCP/2GYW	60 °	565 nm 590 nm		2 High	20 mcd 40 mcd			Diffused White	Through Hole Right Angle	3 mm	T-1	Green Yellow	Round with Domed Top	2.1 V 2.2 V	25 mA 30 mA
Kingbright WP130WCP/2EYW	60 °			Common Cathode	20 mcd 24 mcd				Through Hole Right Angle	3 mm	T-1	Red Yellow	Round with Domed Top			Radial - 3 Leads	7 mm	9.02 mm	2 V 2.1 V	588 nm 617 nm	White	9.65 mm	Diffused	T-1	20mA Red 20mA Yellow	590 nm 627 nm
Kingbright WP130WDT/EGW	60 °			Single	21 mcd			Diffused White	Through Hole Right Angle	3 mm	T-1	Green Red	Round with Domed Top	2 V 2.2 V												568 nm 625 nm
Kingbright WP130WCP/2EGW	60 °			2 High	21 mcd			Diffused White	Through Hole Right Angle	3 mm	T-1	Green Red	Round with Domed Top	2 V 2.2 V												568 nm 625 nm
Kingbright WP130WDT/GYW	60 °	565 nm 590 nm		Single	20 mcd 40 mcd			Diffused White	Through Hole Right Angle	3 mm	T-1	Green Yellow	Round with Domed Top	2.1 V 2.2 V	25 mA 30 mA

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.68
		10	$ 1.06
		100	$ 0.75
		500	$ 0.63
		1000	$ 0.59
		2000	$ 0.56
		5000	$ 0.53
		10000	$ 0.51

Description

General part information

WP130 Series

LED Circuit Board Indicator LED Circuit Board Indicator 2 High Green, Red (x 2) Diffused, White 2.2V Green, 2V Red 20mA Round with Domed Top 3mm, T-1 Through Hole, Right Angle
