WP130WDT/GYW

Active

Kingbright

LED CBI 3MM GRN/YELLOW DIFF RA

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

WP130WDT/GYW

Active

Kingbright

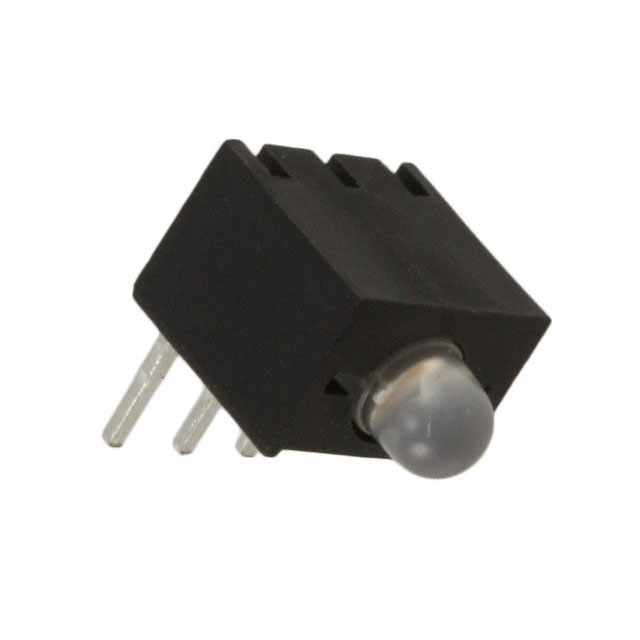

LED CBI 3MM GRN/YELLOW DIFF RA

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	WP130WDT/GYW

Color	Green, Yellow
Configuration	Single
Current	30 mA, 25 mA
Lens Size	3 mm
Lens Size	T-1
Lens Style	Round with Domed Top
Lens Type	Diffused, White
Millicandela Rating	40 mcd, 20 mcd
Mounting Type	Through Hole, Right Angle
Viewing Angle	60 °
Voltage Rating	2.1 V, 2.2 V
Wavelength - Peak [custom]	565 nm, 590 nm

WP130 Series

Part	Viewing Angle	Wavelength - Peak [custom]	Voltage Rating	Configuration	Millicandela Rating	Current [custom]	Current [custom]	Lens Type	Mounting Type	Lens Size	Lens Size	Color	Lens Style	Voltage Rating	Current	Package / Case	Size / Dimension [y]	Size / Dimension [x]	Voltage - Forward (Vf) (Typ)	Wavelength - Dominant [custom]	Lens Color	Height (Max) [Max] [z]	Lens Transparency	Supplier Device Package	Current - Test	Wavelength - Peak
Kingbright WP130WDT/EYW	60 °	590 nm 627 nm	2.1V Yellow 2V Red	Single	20 mcd 24 mcd	30 mA	30 mA	Diffused White	Through Hole Right Angle	3 mm	T-1	Red Yellow	Round with Domed Top
Kingbright WP130WCP/2GYW	60 °	565 nm 590 nm		2 High	20 mcd 40 mcd			Diffused White	Through Hole Right Angle	3 mm	T-1	Green Yellow	Round with Domed Top	2.1 V 2.2 V	25 mA 30 mA
Kingbright WP130WCP/2EYW	60 °			Common Cathode	20 mcd 24 mcd				Through Hole Right Angle	3 mm	T-1	Red Yellow	Round with Domed Top			Radial - 3 Leads	7 mm	9.02 mm	2 V 2.1 V	588 nm 617 nm	White	9.65 mm	Diffused	T-1	20mA Red 20mA Yellow	590 nm 627 nm
Kingbright WP130WDT/EGW	60 °			Single	21 mcd			Diffused White	Through Hole Right Angle	3 mm	T-1	Green Red	Round with Domed Top	2 V 2.2 V												568 nm 625 nm
Kingbright WP130WCP/2EGW	60 °			2 High	21 mcd			Diffused White	Through Hole Right Angle	3 mm	T-1	Green Red	Round with Domed Top	2 V 2.2 V												568 nm 625 nm
Kingbright WP130WDT/GYW	60 °	565 nm 590 nm		Single	20 mcd 40 mcd			Diffused White	Through Hole Right Angle	3 mm	T-1	Green Yellow	Round with Domed Top	2.1 V 2.2 V	25 mA 30 mA

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.74
		10	$ 0.48
		100	$ 0.32
		1000	$ 0.29

Description

General part information

WP130 Series

LED Circuit Board Indicator LED Circuit Board Indicator Single Green, Yellow Diffused, White 2.2V Green, 2.1V Yellow 25mA Green, 30mA Yellow Round with Domed Top 3mm, T-1 Through Hole, Right Angle
