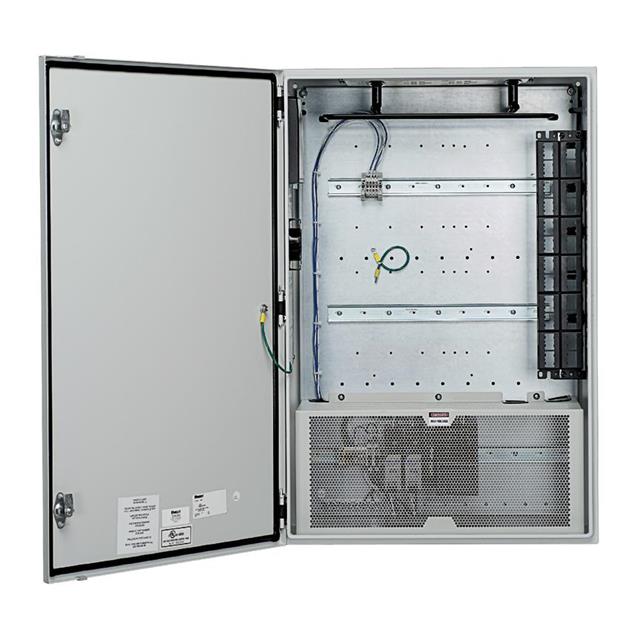

Z23U-S25S

Active

Panduit Corp

ENCLOSURE STL GRAY 24"L X 11.6"W

Search across all available documentation for this part.

Active

Panduit Corp

ENCLOSURE STL GRAY 24"L X 11.6"W

Technical Specifications

Parameters and characteristics for this part

Part	Area (L x W)	Area (L x W)	Height [diameter]	Height [diameter]	Design	Color	Container Type	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Ratings	Material
Panduit Corp Z23U-621	278 in˛	1796 cm˛	914.4 mm	36 in	Cover Included	Gray	Enclosure	24 "	11.6 "	609.6 mm	294.64 mm	IP66 NEMA 4X
Panduit Corp Z23U-S21S	278 in˛	1796 cm˛	914.4 mm	36 in	Hinged Door	Gray	Enclosure	11.6 "	24 in	294.64 mm	609.6 mm	12 UL-508A IP66 NEMA 4	Metal Steel
Panduit Corp Z23U-S25S	278 in˛	1796 cm˛	914.4 mm	36 in	Hinged Door	Gray	Enclosure	11.6 "	24 in	294.64 mm	609.6 mm	IP66 NEMA 12 NEMA 4 NEMA 4X UL-508A	Metal Steel
Panduit Corp Z23U-S15	278 in˛	1796 cm˛	914.4 mm	36 in	Cover Included	Gray	Enclosure	24 "	11.6 "	609.6 mm	294.64 mm	IP66 NEMA 4	Metal Steel
Panduit Corp Z23U-624S	278 in˛	1796 cm˛	914.4 mm	36 in	Cover Included	Gray	Enclosure	24 "	11.6 "	609.6 mm	294.64 mm	IP66 NEMA 4X

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Enclosure Metal, Steel Gray Hinged Door 24.000" L x 11.600" W (609.60mm x 294.64mm) X 36.000" (914.40mm)
