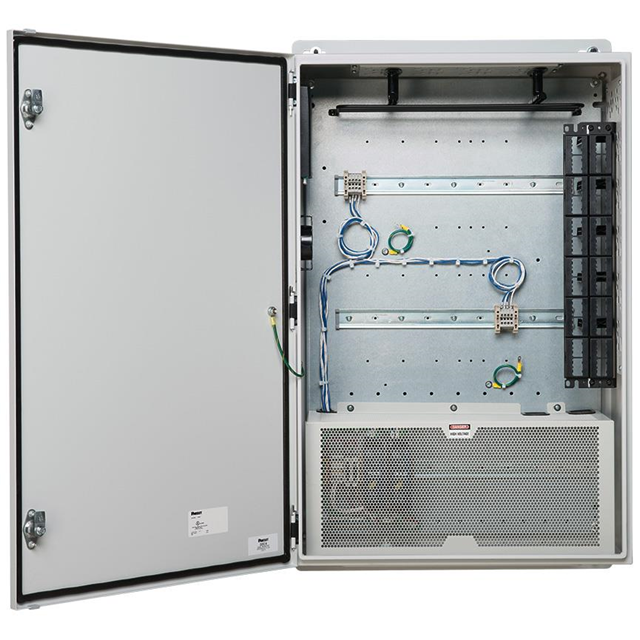

Z23U-624S

Active

Panduit Corp

ENCLOSURE S STL 11.6"L X 24"W

Search across all available documentation for this part.

Active

Panduit Corp

ENCLOSURE S STL 11.6"L X 24"W

Technical Specifications

Parameters and characteristics for this part

Part	Area (L x W)	Area (L x W)	Height [diameter]	Height [diameter]	Design	Color	Container Type	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Ratings	Material
Panduit Corp Z23U-621	278 in˛	1796 cm˛	914.4 mm	36 in	Cover Included	Gray	Enclosure	24 "	11.6 "	609.6 mm	294.64 mm	IP66 NEMA 4X
Panduit Corp Z23U-S21S	278 in˛	1796 cm˛	914.4 mm	36 in	Hinged Door	Gray	Enclosure	11.6 "	24 in	294.64 mm	609.6 mm	12 UL-508A IP66 NEMA 4	Metal Steel
Panduit Corp Z23U-S25S	278 in˛	1796 cm˛	914.4 mm	36 in	Hinged Door	Gray	Enclosure	11.6 "	24 in	294.64 mm	609.6 mm	IP66 NEMA 12 NEMA 4 NEMA 4X UL-508A	Metal Steel
Panduit Corp Z23U-S15	278 in˛	1796 cm˛	914.4 mm	36 in	Cover Included	Gray	Enclosure	24 "	11.6 "	609.6 mm	294.64 mm	IP66 NEMA 4	Metal Steel
Panduit Corp Z23U-624S	278 in˛	1796 cm˛	914.4 mm	36 in	Cover Included	Gray	Enclosure	24 "	11.6 "	609.6 mm	294.64 mm	IP66 NEMA 4X

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 9865.46

General part information

Enclosure Metal, Stainless Steel Gray Cover Included 11.600" L x 24.000" W (294.64mm x 609.60mm) X 36.000" (914.40mm)
