RM3X10MM 2701

Active

APM HEXSEAL

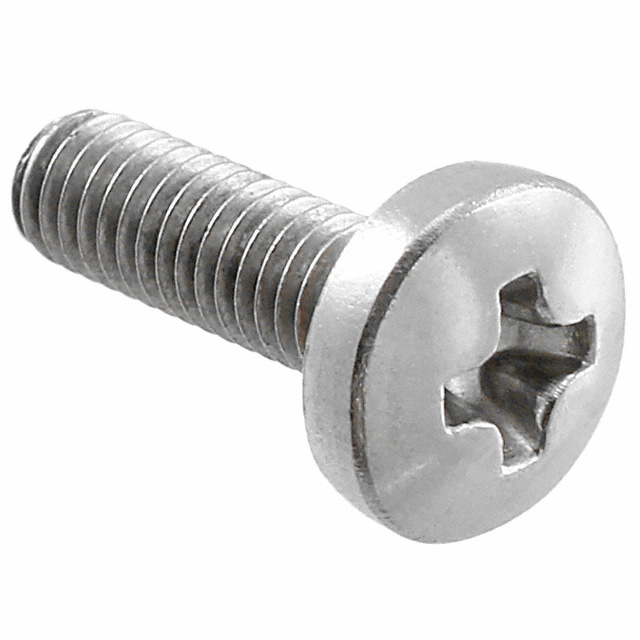

M3X10MM, PHILLIPS PAN HEAD, 18-8 STAINLESS STEEL WITH SILICONE O-RING, SEAL SCREW

Search across all available documentation for this part.

Active

APM HEXSEAL

M3X10MM, PHILLIPS PAN HEAD, 18-8 STAINLESS STEEL WITH SILICONE O-RING, SEAL SCREW

Technical Specifications

Parameters and characteristics for this part

Part	Type	Head Diameter [diameter]	Head Diameter	Material	Features	Length - Below Head [custom]	Length - Below Head [custom]	Drive Type	Head Height	Head Height	Length - Overall [x]	Length - Overall [x]	Thread Size	Screw Head Type	Length - Below Head [x]	Length - Below Head [x]	Length - Below Head	Length - Below Head	Length - Overall [x]
APM HEXSEAL RM3X8MM 2701	Machine Screw	0.264 in	6.7 mm	Stainless Steel	Self Sealing	8 mm	0.315 in	Phillips	2.4 mm	0.094 in	10.4 mm	0.409 "	M3	Pan Head
APM HEXSEAL RM3X10MM 2701	Machine Screw	0.264 in	6.7 mm	Stainless Steel	Self Sealing			Phillips	2.4 mm	0.094 in	12.4 mm	0.488 in	M3	Pan Head	10 mm	0.394 in
APM HEXSEAL RM3X12MM 2701	Machine Screw			Stainless Steel	Self Sealing			Phillips	2.4 mm	0.094 in	14.4 mm	0.567 in	M3	Pan Head	11.99 mm	0.472 in
APM HEXSEAL RM3X6MM 2701	Machine Screw			Stainless Steel	Self Sealing			Phillips	2.4 mm	0.094 in	8.69 mm	0.342 in	M3	Pan Head			6 mm	0.236 in
APM HEXSEAL RM3X4MM 2701	Machine Screw	0.264 in	6.7 mm	Stainless Steel	Self Sealing			Phillips	2.4 mm	0.094 in	6.35 mm	0.25 in	M3	Pan Head			4 mm	0.157 in	0.25 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

M3 Pan Head Machine Screw Phillips Drive Stainless Steel

Technical documentation and resources
