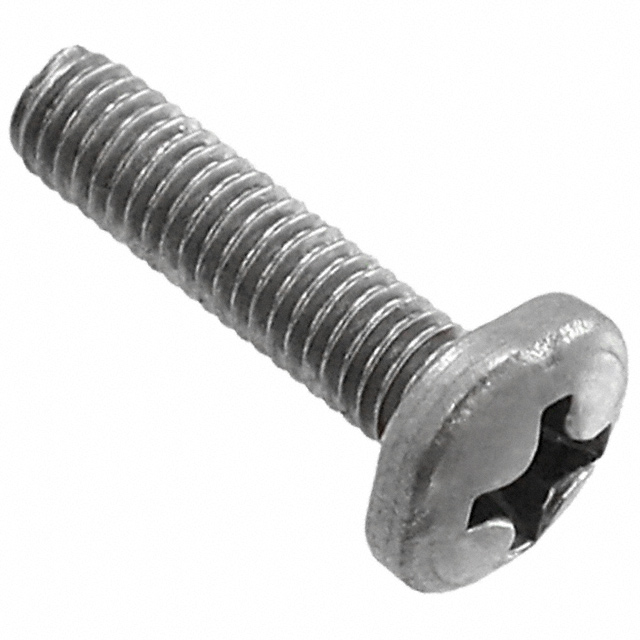

RM3X12MM 2701
ActiveAPM HEXSEAL
MACH SCREW PAN HEAD PHILLIPS M3
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
RM3X12MM 2701
ActiveAPM HEXSEAL
MACH SCREW PAN HEAD PHILLIPS M3
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | RM3X12MM 2701 |
|---|---|
| Drive Type | Phillips |
| Features | Self Sealing |
| Head Height | 2.4 mm |
| Head Height | 0.094 in |
| Length - Below Head [x] | 0.472 in |
| Length - Below Head [x] | 11.99 mm |
| Length - Overall [x] | 14.4 mm |
| Length - Overall [x] | 0.567 in |
| Material | Stainless Steel |
| Screw Head Type | Pan Head |
| Thread Size | M3 |
| Type | Machine Screw |
RM3 Series
| Part | Type | Head Diameter [diameter] | Head Diameter | Material | Features | Length - Below Head [custom] | Length - Below Head [custom] | Drive Type | Head Height | Head Height | Length - Overall [x] | Length - Overall [x] | Thread Size | Screw Head Type | Length - Below Head [x] | Length - Below Head [x] | Length - Below Head | Length - Below Head | Length - Overall [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
APM HEXSEAL | Machine Screw | 0.264 in | 6.7 mm | Stainless Steel | Self Sealing | 8 mm | 0.315 in | Phillips | 2.4 mm | 0.094 in | 10.4 mm | 0.409 " | M3 | Pan Head | |||||
APM HEXSEAL | Machine Screw | 0.264 in | 6.7 mm | Stainless Steel | Self Sealing | Phillips | 2.4 mm | 0.094 in | 12.4 mm | 0.488 in | M3 | Pan Head | 10 mm | 0.394 in | |||||
APM HEXSEAL | Machine Screw | Stainless Steel | Self Sealing | Phillips | 2.4 mm | 0.094 in | 14.4 mm | 0.567 in | M3 | Pan Head | 11.99 mm | 0.472 in | |||||||
APM HEXSEAL | Machine Screw | Stainless Steel | Self Sealing | Phillips | 2.4 mm | 0.094 in | 8.69 mm | 0.342 in | M3 | Pan Head | 6 mm | 0.236 in | |||||||
APM HEXSEAL | Machine Screw | 0.264 in | 6.7 mm | Stainless Steel | Self Sealing | Phillips | 2.4 mm | 0.094 in | 6.35 mm | 0.25 in | M3 | Pan Head | 4 mm | 0.157 in | 0.25 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.71 | |
| 5 | $ 0.61 | |||
| 10 | $ 0.51 | |||
| 25 | $ 0.47 | |||
| 50 | $ 0.45 | |||
| 100 | $ 0.40 | |||
| 250 | $ 0.38 | |||
| 500 | $ 0.36 | |||
| 1000 | $ 0.34 | |||
Description
General part information
RM3 Series
M3 Pan Head Machine Screw Phillips Drive Stainless Steel
