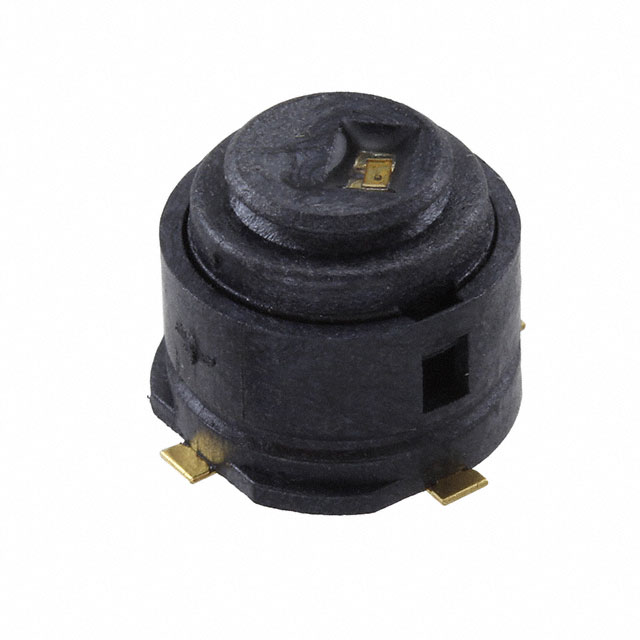

14AP-L1-03-R

Active

Grayhill Inc.

SWITCH PUSH SPST-NO .1A 30V

Search across all available documentation for this part.

Active

Grayhill Inc.

SWITCH PUSH SPST-NO .1A 30V

Technical Specifications

Parameters and characteristics for this part

Specification	14AP-L1-03-R

Actuator Marking	No Marking
Actuator Type	Round, Button
Circuit	SPST-NO
Color - Actuator/Cap	Clear
Current Rating (Amps)	100 mA
Electrical Life	100000 Cycles
Features	Board Guide
Illumination Type, Color	Red, LED
Illumination Voltage (Nominal)	2 VDC
Mechanical Life	100000 Cycles
Mounting Type	Surface Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Switch Function	Off-Mom
Termination Style	SMD (SMT) Tab
Type	Keyswitch, Illuminated
Voltage Rating - DC	30 V

Part	Actuator Marking	Mounting Type	Illumination Type, Color	Switch Function	Circuit	Actuator Type	Illumination Voltage (Nominal)	Color - Actuator/Cap	Current Rating (Amps)	Electrical Life	Features	Mechanical Life	Operating Temperature [Max]	Operating Temperature [Min]	Type	Termination Style	Voltage Rating - DC
Grayhill Inc. 14AP-L1-03-W	No Marking	Surface Mount	LED White	Off-Mom	SPST-NO	Button Round	2.85 VDC	Clear	100 mA	100000 Cycles	Board Guide	100000 Cycles	85 °C	-40 °C	Keyswitch Illuminated	SMD (SMT) Tab	30 V
Grayhill Inc. 14AP-L1-03-B	No Marking	Surface Mount	Blue LED	Off-Mom	SPST-NO	Button Round	2.85 VDC	Clear	100 mA	100000 Cycles	Board Guide	100000 Cycles	85 °C	-40 °C	Keyswitch Illuminated	SMD (SMT) Tab	30 V
Grayhill Inc. 14AP-L1-03-R	No Marking	Surface Mount	LED Red	Off-Mom	SPST-NO	Button Round	2 VDC	Clear	100 mA	100000 Cycles	Board Guide	100000 Cycles	85 °C	-40 °C	Keyswitch Illuminated	SMD (SMT) Tab	30 V
Grayhill Inc. 14AP-L1-03-Y	No Marking	Surface Mount	LED Yellow	Off-Mom	SPST-NO	Button Round	2 VDC	Clear	100 mA	100000 Cycles	Board Guide	100000 Cycles	85 °C	-40 °C	Keyswitch Illuminated	SMD (SMT) Tab	30 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pushbutton Switch SPST-NO Keyswitch, Illuminated Surface Mount
