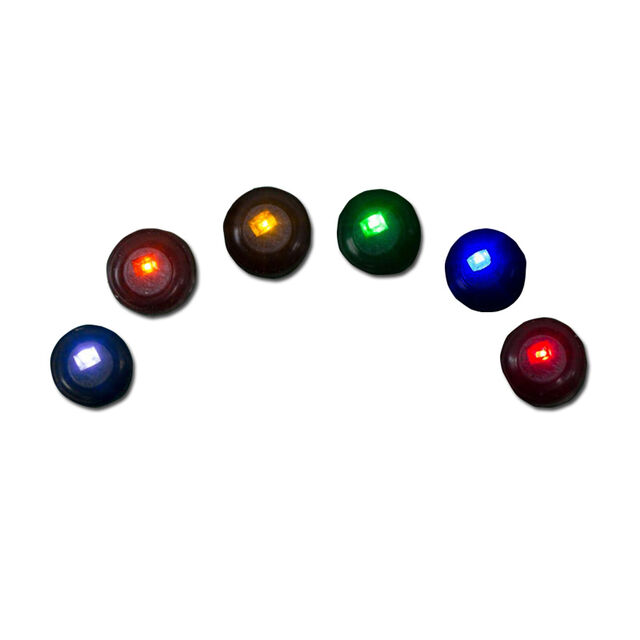

14AP-L1-03-B

Active

Grayhill Inc.

SWITCH PUSH SPST-NO .1A 30V

Search across all available documentation for this part.

Active

Grayhill Inc.

SWITCH PUSH SPST-NO .1A 30V

Technical Specifications

Parameters and characteristics for this part

Specification	14AP-L1-03-B

Actuator Marking	No Marking
Actuator Type	Round, Button
Circuit	SPST-NO
Color - Actuator/Cap	Clear
Current Rating (Amps)	100 mA
Electrical Life	100000 Cycles
Features	Board Guide
Illumination Type, Color	LED, Blue
Illumination Voltage (Nominal)	2.85 VDC
Mechanical Life	100000 Cycles
Mounting Type	Surface Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Switch Function	Off-Mom
Termination Style	SMD (SMT) Tab
Type	Keyswitch, Illuminated
Voltage Rating - DC	30 V

Part	Actuator Marking	Mounting Type	Illumination Type, Color	Switch Function	Circuit	Actuator Type	Illumination Voltage (Nominal)	Color - Actuator/Cap	Current Rating (Amps)	Electrical Life	Features	Mechanical Life	Operating Temperature [Max]	Operating Temperature [Min]	Type	Termination Style	Voltage Rating - DC
Grayhill Inc. 14AP-L1-03-W	No Marking	Surface Mount	LED White	Off-Mom	SPST-NO	Button Round	2.85 VDC	Clear	100 mA	100000 Cycles	Board Guide	100000 Cycles	85 °C	-40 °C	Keyswitch Illuminated	SMD (SMT) Tab	30 V
Grayhill Inc. 14AP-L1-03-B	No Marking	Surface Mount	Blue LED	Off-Mom	SPST-NO	Button Round	2.85 VDC	Clear	100 mA	100000 Cycles	Board Guide	100000 Cycles	85 °C	-40 °C	Keyswitch Illuminated	SMD (SMT) Tab	30 V
Grayhill Inc. 14AP-L1-03-R	No Marking	Surface Mount	LED Red	Off-Mom	SPST-NO	Button Round	2 VDC	Clear	100 mA	100000 Cycles	Board Guide	100000 Cycles	85 °C	-40 °C	Keyswitch Illuminated	SMD (SMT) Tab	30 V
Grayhill Inc. 14AP-L1-03-Y	No Marking	Surface Mount	LED Yellow	Off-Mom	SPST-NO	Button Round	2 VDC	Clear	100 mA	100000 Cycles	Board Guide	100000 Cycles	85 °C	-40 °C	Keyswitch Illuminated	SMD (SMT) Tab	30 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pushbutton Switch SPST-NO Keyswitch, Illuminated Surface Mount
