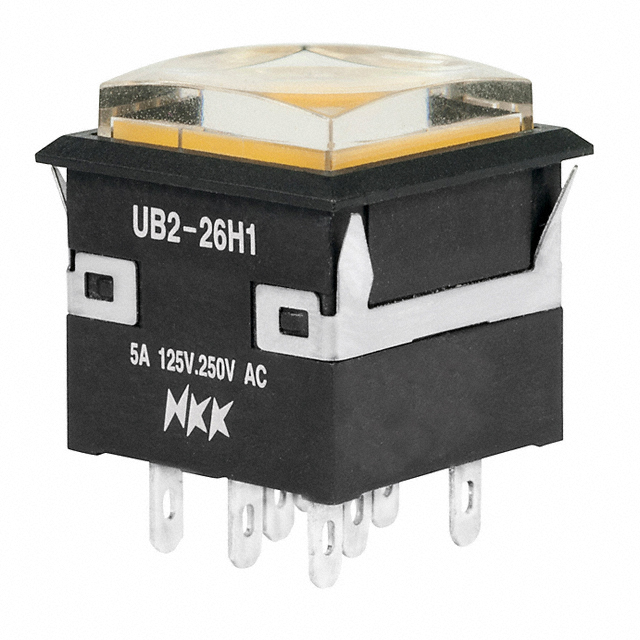

UB226KKW015D-1JD

Active

NKK Switches

SWITCH PUSHBUTTON DPDT 5A 125V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet UB2 Indicators

UB226KKW015D-1JD

Active

NKK Switches

SWITCH PUSHBUTTON DPDT 5A 125V

Deep-Dive with AI

DocumentsDatasheet UB2 Indicators

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	UB226KKW015D-1JD

Actuator Marking	No Marking
Actuator Type	Button, Square
Circuit	DPDT
Color - Actuator/Cap	Clear
Current Rating (Amps)	5 A
Electrical Life	10000 Cycles
Features	Sealed - Fully
Illumination Type, Color	Amber, LED
Illumination Voltage (Nominal)	2 VDC
Mechanical Life	200000 Cycles
Mounting Type	Panel Mount, Snap-In
Operating Temperature [Max]	50 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [x]	17.4 mm
Panel Cutout Dimensions [y]	17.4 mm
Switch Function	On-On
Termination Style	Solder Lug
Type	Illuminated, Standard
Voltage Rating - AC	125 V
Voltage Rating - DC	30 V

UB226KK Series

Part	Actuator Type	Termination Style	Mounting Type	Color - Actuator/Cap	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Features	Operating Temperature [Max]	Operating Temperature [Min]	Illumination Voltage (Nominal)	Current Rating (Amps)	Electrical Life	Voltage Rating - DC	Voltage Rating - AC	Type	Circuit	Actuator Marking	Switch Function	Illumination Type, Color	Mechanical Life
NKK Switches UB226KKG016CF-1JB	Button Square	Solder Lug	Panel Mount Snap-In	Clear	17.4 mm	17.4 mm	Sealed - Fully	50 °C	-25 °C	2.1 VDC 3.5 VDC	0.4 VA	200000 Cycles	28 V	28 V	Illuminated Standard	DPDT	No Marking	On-On	Green/Red LED	200000 Cycles
NKK Switches UB226KKW015D	Plunger for Cap	Solder Lug	Panel Mount Snap-In		17.4 mm	17.4 mm	Sealed - Fully	50 °C	-25 °C	2 VDC	5 A	10000 Cycles	30 V	125 V	Illuminated Standard	DPDT	No Marking	On-On	Amber LED	200000 Cycles
NKK Switches UB226KKW016CF-2B	Button Square	Solder Lug	Panel Mount Snap-In	White	17.4 mm	17.4 mm	Sealed - Fully	50 °C	-25 °C	2.1 VDC 3.5 VDC	5 A	10000 Cycles	30 V	125 V	Illuminated Standard	DPDT	No Marking	On-On	Green/Red LED	200000 Cycles
NKK Switches UB226KKW01N-4JF	Button Square	Solder Lug	Panel Mount Snap-In	Clear	17.4 mm	17.4 mm	Sealed - Fully	70 °C	-25 °C		5 A	10000 Cycles	30 V	125 V	Standard	DPDT	No Marking	On-On		200000 Cycles
NKK Switches UB226KKW016G-1JB	Button Square	Solder Lug	Panel Mount Snap-In	Clear	17.4 mm	17.4 mm	Sealed - Fully	50 °C	-25 °C	2.9 VDC	5 A	10000 Cycles	30 V	125 V	Illuminated Standard	DPDT	No Marking	On-On	Blue LED	200000 Cycles
NKK Switches UB226KKW016G	Plunger for Cap	Solder Lug	Panel Mount Snap-In		17.4 mm	17.4 mm	Sealed - Fully	50 °C	-25 °C	2.9 VDC	5 A	10000 Cycles	30 V	125 V	Illuminated Standard	DPDT	No Marking	On-On	Blue LED	200000 Cycles
NKK Switches UB226KKW015F-1JB	Button Square	Solder Lug	Panel Mount Snap-In	Clear	17.4 mm	17.4 mm	Sealed - Fully	50 °C	-25 °C	2.1 VDC	5 A	10000 Cycles	30 V	125 V	Illuminated Standard	DPDT	No Marking	On-On	Green LED	200000 Cycles
NKK Switches UB226KKG016G-1JB	Button Square	Solder Lug	Panel Mount Snap-In	Clear	17.4 mm	17.4 mm	Sealed - Fully	50 °C	-25 °C	2.9 VDC	0.4 VA	200000 Cycles	28 V	28 V	Illuminated Standard	DPDT	No Marking	On-On	Blue LED	200000 Cycles
NKK Switches UB226KKW015D-1JD	Button Square	Solder Lug	Panel Mount Snap-In	Clear	17.4 mm	17.4 mm	Sealed - Fully	50 °C	-25 °C	2 VDC	5 A	10000 Cycles	30 V	125 V	Illuminated Standard	DPDT	No Marking	On-On	Amber LED	200000 Cycles
NKK Switches UB226KKG016CF	Plunger for Cap	Solder Lug	Panel Mount Snap-In		17.4 mm	17.4 mm	Sealed - Fully	50 °C	-25 °C	2.1 VDC 3.5 VDC	0.4 VA	200000 Cycles	28 V	28 V	Illuminated Standard	DPDT	No Marking	On-On	Green/Red LED	200000 Cycles

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 17.22
		10	$ 15.44
		25	$ 17.75
		50	$ 16.97
		100	$ 13.49
		250	$ 15.30
		500	$ 14.63
Newark	Each	1	$ 32.79
		5	$ 31.15
		10	$ 28.87
		25	$ 26.34
		50	$ 22.79
		100	$ 21.27
		250	$ 19.37

Description

General part information

UB226KK Series

Pushbutton Switch DPDT Standard, Illuminated Panel Mount, Snap-In
