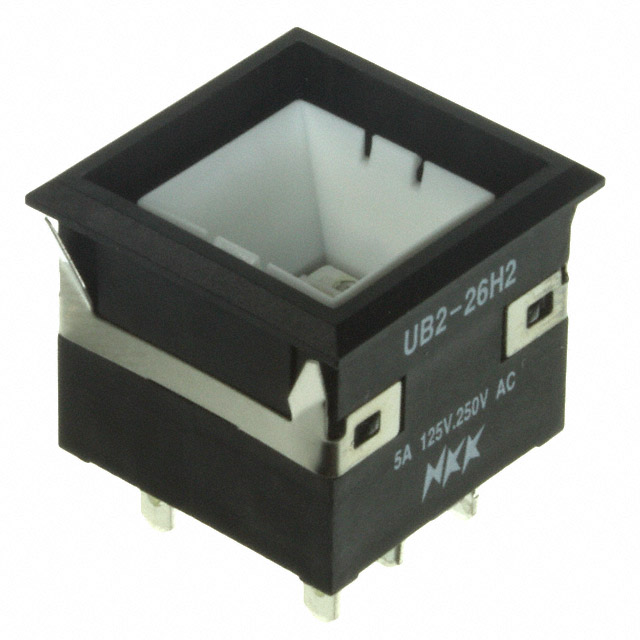

UB226KKW016G

Active

NKK Switches

SWITCH PUSHBUTTON DPDT 5A 125V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet UB2 Indicators

UB226KKW016G

Active

NKK Switches

SWITCH PUSHBUTTON DPDT 5A 125V

Deep-Dive with AI

DocumentsDatasheet UB2 Indicators

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	UB226KKW016G

Actuator Marking	No Marking
Actuator Type	Plunger for Cap
Circuit	DPDT
Current Rating (Amps)	5 A
Electrical Life	10000 Cycles
Features	Sealed - Fully
Illumination Type, Color	LED, Blue
Illumination Voltage (Nominal)	2.9 VDC
Mechanical Life	200000 Cycles
Mounting Type	Panel Mount, Snap-In
Operating Temperature [Max]	50 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [x]	17.4 mm
Panel Cutout Dimensions [y]	17.4 mm
Switch Function	On-On
Termination Style	Solder Lug
Type	Illuminated, Standard
Voltage Rating - AC	125 V
Voltage Rating - DC	30 V

UB226KK Series

Part	Actuator Type	Termination Style	Mounting Type	Color - Actuator/Cap	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Features	Operating Temperature [Max]	Operating Temperature [Min]	Illumination Voltage (Nominal)	Current Rating (Amps)	Electrical Life	Voltage Rating - DC	Voltage Rating - AC	Type	Circuit	Actuator Marking	Switch Function	Illumination Type, Color	Mechanical Life
NKK Switches UB226KKG016CF-1JB	Button Square	Solder Lug	Panel Mount Snap-In	Clear	17.4 mm	17.4 mm	Sealed - Fully	50 °C	-25 °C	2.1 VDC 3.5 VDC	0.4 VA	200000 Cycles	28 V	28 V	Illuminated Standard	DPDT	No Marking	On-On	Green/Red LED	200000 Cycles
NKK Switches UB226KKW015D	Plunger for Cap	Solder Lug	Panel Mount Snap-In		17.4 mm	17.4 mm	Sealed - Fully	50 °C	-25 °C	2 VDC	5 A	10000 Cycles	30 V	125 V	Illuminated Standard	DPDT	No Marking	On-On	Amber LED	200000 Cycles
NKK Switches UB226KKW016CF-2B	Button Square	Solder Lug	Panel Mount Snap-In	White	17.4 mm	17.4 mm	Sealed - Fully	50 °C	-25 °C	2.1 VDC 3.5 VDC	5 A	10000 Cycles	30 V	125 V	Illuminated Standard	DPDT	No Marking	On-On	Green/Red LED	200000 Cycles
NKK Switches UB226KKW01N-4JF	Button Square	Solder Lug	Panel Mount Snap-In	Clear	17.4 mm	17.4 mm	Sealed - Fully	70 °C	-25 °C		5 A	10000 Cycles	30 V	125 V	Standard	DPDT	No Marking	On-On		200000 Cycles
NKK Switches UB226KKW016G-1JB	Button Square	Solder Lug	Panel Mount Snap-In	Clear	17.4 mm	17.4 mm	Sealed - Fully	50 °C	-25 °C	2.9 VDC	5 A	10000 Cycles	30 V	125 V	Illuminated Standard	DPDT	No Marking	On-On	Blue LED	200000 Cycles
NKK Switches UB226KKW016G	Plunger for Cap	Solder Lug	Panel Mount Snap-In		17.4 mm	17.4 mm	Sealed - Fully	50 °C	-25 °C	2.9 VDC	5 A	10000 Cycles	30 V	125 V	Illuminated Standard	DPDT	No Marking	On-On	Blue LED	200000 Cycles
NKK Switches UB226KKW015F-1JB	Button Square	Solder Lug	Panel Mount Snap-In	Clear	17.4 mm	17.4 mm	Sealed - Fully	50 °C	-25 °C	2.1 VDC	5 A	10000 Cycles	30 V	125 V	Illuminated Standard	DPDT	No Marking	On-On	Green LED	200000 Cycles
NKK Switches UB226KKG016G-1JB	Button Square	Solder Lug	Panel Mount Snap-In	Clear	17.4 mm	17.4 mm	Sealed - Fully	50 °C	-25 °C	2.9 VDC	0.4 VA	200000 Cycles	28 V	28 V	Illuminated Standard	DPDT	No Marking	On-On	Blue LED	200000 Cycles
NKK Switches UB226KKW015D-1JD	Button Square	Solder Lug	Panel Mount Snap-In	Clear	17.4 mm	17.4 mm	Sealed - Fully	50 °C	-25 °C	2 VDC	5 A	10000 Cycles	30 V	125 V	Illuminated Standard	DPDT	No Marking	On-On	Amber LED	200000 Cycles
NKK Switches UB226KKG016CF	Plunger for Cap	Solder Lug	Panel Mount Snap-In		17.4 mm	17.4 mm	Sealed - Fully	50 °C	-25 °C	2.1 VDC 3.5 VDC	0.4 VA	200000 Cycles	28 V	28 V	Illuminated Standard	DPDT	No Marking	On-On	Green/Red LED	200000 Cycles
