19461160290
LTBHARTING Technology Group

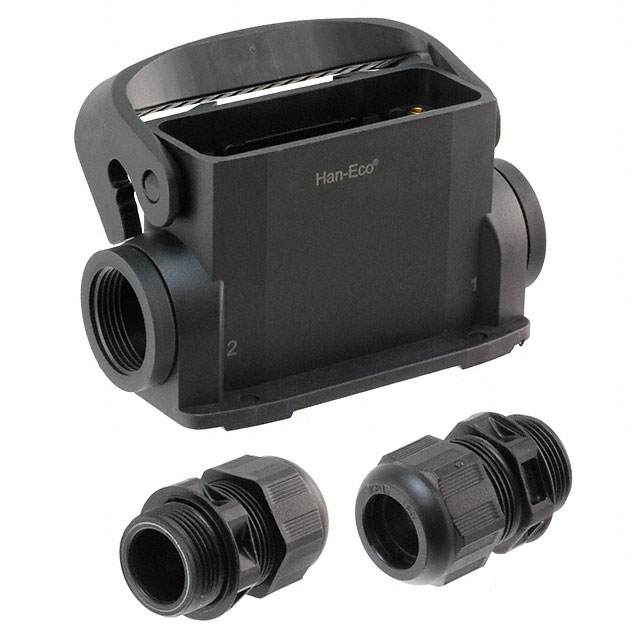

HAN-ECO 16A-HSM2-M20 W. CABLE GL
Deep-Dive with AI
Search across all available documentation for this part.
19461160290
LTBHARTING Technology Group
HAN-ECO 16A-HSM2-M20 W. CABLE GL
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 19461160290 |
|---|---|
| Connector Type | Base - Box Mount |
| Features | Feed Through |
| Housing Color | Black |
| Housing Material | Polyamide (PA), Nylon, Glass Filled |
| Ingress Protection | IP65 - Dust Tight, Water Resistant |
| Lock Location | Locking Clip (1) on Base Bottom |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Size | 16 A |
| Style | Side Entry |
| Thread Size | M20 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 44.14 | |
| 10 | $ 32.74 | |||
Description
General part information
19461160 Series
Base - Box Mount Connector Side Entry M20 16A IP65 - Dust Tight, Water Resistant
