19461160251

Active

HARTING Technology Group

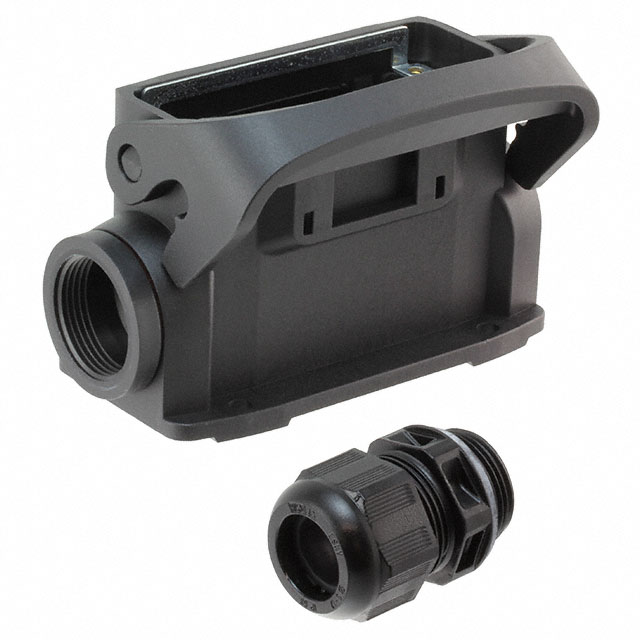

HAN-ECO 16A-HSM1-M25 W. CABLE GL

Search across all available documentation for this part.

Active

HARTING Technology Group

HAN-ECO 16A-HSM1-M25 W. CABLE GL

Technical Specifications

Parameters and characteristics for this part

Specification	19461160251

Connector Type	Base - Box Mount
Housing Color	Black
Housing Material	Polyamide (PA), Nylon, Glass Filled
Ingress Protection	IP65 - Dust Tight, Water Resistant
Lock Location	Locking Clip (1) on Base Bottom
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size	16 A
Style	Side Entry
Thread Size	M25

Part	Size	Housing Color	Style	Housing Material	Ingress Protection	Thread Size	Connector Type	Features	Operating Temperature [Max]	Operating Temperature [Min]	Lock Location
HARTING Technology Group 19461160435	16 A	Black	Bottom Entry	Polyamide (PA) Nylon Glass Filled	IP65 - Dust Tight Water Resistant	M20	Hood - Coupling	Cable to Cable	125 °C	-40 °C	Locking Clip (1) on Hood Top
HARTING Technology Group 19461160290	16 A	Black	Side Entry	Polyamide (PA) Nylon Glass Filled	IP65 - Dust Tight Water Resistant	M20	Base - Box Mount	Feed Through	125 °C	-40 °C	Locking Clip (1) on Base Bottom
HARTING Technology Group 19461160293	16 A	Black	Side Entry	Polyamide (PA) Nylon Glass Filled	IP65 - Dust Tight Water Resistant	M25	Base - Box Mount		125 °C	-40 °C	Locking Clip (1) on Base Bottom
HARTING Technology Group 19461160251	16 A	Black	Side Entry	Polyamide (PA) Nylon Glass Filled	IP65 - Dust Tight Water Resistant	M25	Base - Box Mount		125 °C	-40 °C	Locking Clip (1) on Base Bottom
HARTING Technology Group 19461160545	16 A	Black	Side Entry	Polyamide (PA) Nylon Glass Filled	IP65 - Dust Tight Water Resistant	M20	Hood		125 °C	-40 °C	Locking Clip (1) on Base Bottom

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 75.29

General part information

Base - Box Mount Connector Side Entry M25 16A IP65 - Dust Tight, Water Resistant
