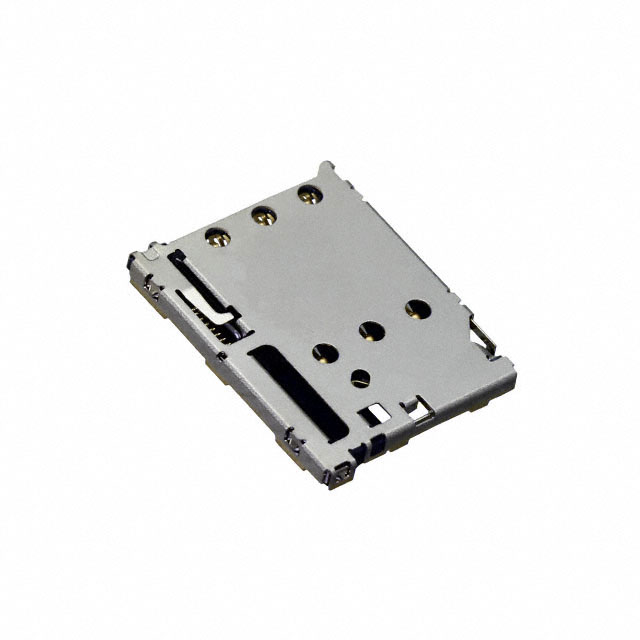

SF72S006VBDR2500
ActiveJAE Electronics
NANO SIM CARD CONNECTOR
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SF72S006VBDR2500
ActiveJAE Electronics
NANO SIM CARD CONNECTOR
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SF72S006VBDR2500 |
|---|---|
| Card Type | NANO SIM |
| Connector Type | Connector and Ejector |
| Contact Finish | Gold |
| Contact Finish Thickness | Flash |
| Features | Switch |
| Height Above Board | 0.049 in |
| Height Above Board | 1.25 mm |
| Insertion, Removal Method | Push Out, Push In |
| Mounting Feature | Normal, Standard - Top |
| Mounting Type | Surface Mount, Right Angle |
| Number of Positions | 8 (6 + 2) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 2.26 | |
| 10 | $ 1.97 | |||
| 25 | $ 1.89 | |||
| 50 | $ 1.85 | |||
| 100 | $ 1.76 | |||
| 250 | $ 1.59 | |||
| 500 | $ 1.47 | |||
| 1000 | $ 1.26 | |||
| Digi-Reel® | 1 | $ 2.26 | ||
| 10 | $ 1.97 | |||
| 25 | $ 1.89 | |||
| 50 | $ 1.85 | |||
| 100 | $ 1.76 | |||
| 250 | $ 1.59 | |||
| 500 | $ 1.47 | |||
| 1000 | $ 1.26 | |||
| Tape & Reel (TR) | 2500 | $ 1.17 | ||
| 5000 | $ 1.12 | |||
Description
General part information
SF72S006 Series
8 (6 + 2) Position Card Connector NANO SIM Surface Mount, Right Angle Gold
Documents
Technical documentation and resources
