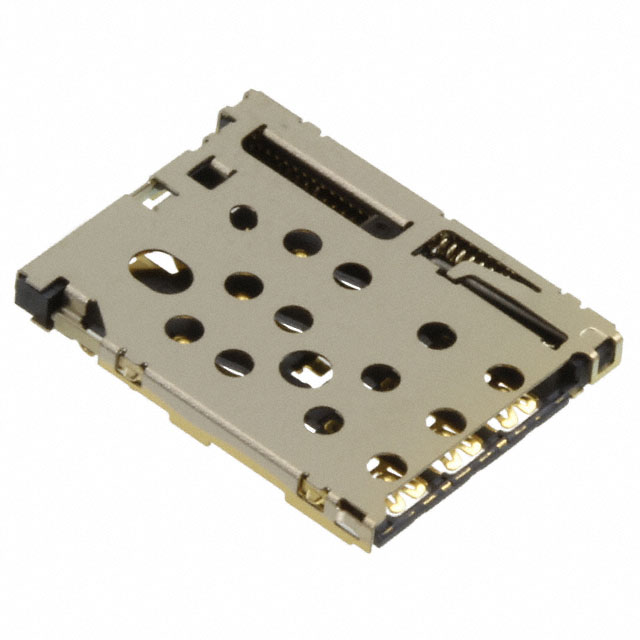

SF72S006VBAR2500
ObsoleteJAE Electronics
CONN NANO SIM CARD PUSH-PUSH
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SF72S006VBAR2500
ObsoleteJAE Electronics
CONN NANO SIM CARD PUSH-PUSH
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SF72S006VBAR2500 |
|---|---|
| Card Type | NANO SIM |
| Connector Type | Connector and Ejector |
| Contact Finish | Gold |
| Contact Finish Thickness | 0.3 Ám |
| Contact Finish Thickness | 11.8 Áin |
| Features | Switch |
| Height Above Board | 0.049 in |
| Height Above Board | 1.25 mm |
| Insertion, Removal Method | Push Out, Push In |
| Mounting Feature | Normal, Standard - Top |
| Mounting Type | Surface Mount, Right Angle |
| Number of Positions | 8 (6 + 2) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
SF72S006 Series
8 (6 + 2) Position Card Connector NANO SIM Surface Mount, Right Angle Gold
Documents
Technical documentation and resources
