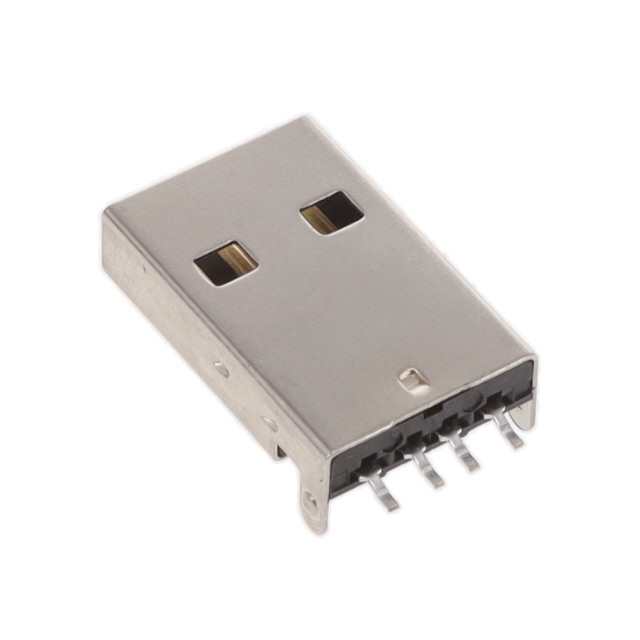

USB-AP-S-RA-SMT
ActiveAdam Tech
USB A 2.0, R/A, SMT, PLUG
Deep-Dive with AI
Search across all available documentation for this part.
USB-AP-S-RA-SMT
ActiveAdam Tech
USB A 2.0, R/A, SMT, PLUG
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | USB-AP-S-RA-SMT |
|---|---|
| Connector Type | USB-A (USB TYPE-A) |
| Contact Finish | Gold |
| Current Rating (Amps) | 1.5 A |
| Gender | Plug |
| Insulation Color | Black |
| Material Flammability Rating | UL94 V-0 |
| Mounting Feature | Horizontal |
| Mounting Type | Through Hole, Surface Mount, Right Angle |
| Number of Contacts [custom] | 4 |
| Number of Ports | 1 |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -20 C |
| Shell/Shielding Material | Steel (SPCC) |
| Shielding | Shielded |
| Specifications | USB 2.0 |
| Termination | Solder |
| Voltage - Rated | 30 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 0.63 | |
| 10 | $ 0.48 | |||
| 25 | $ 0.43 | |||
| 40 | $ 0.41 | |||
| 80 | $ 0.38 | |||
| 230 | $ 0.33 | |||
| 440 | $ 0.31 | |||
| 945 | $ 0.29 | |||
| 2400 | $ 0.26 | |||
Description
General part information
USB-A Series
USB-A (USB TYPE-A) USB 2.0 Plug Connector 4 Position Surface Mount, Right Angle; Through Hole
