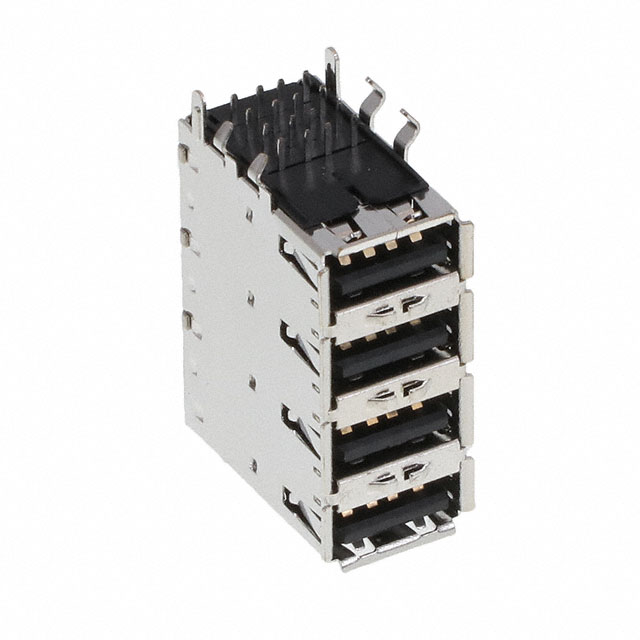

USB-A-Q-RA

Active

Adam Tech

USB A 2.0, QUAD PORT, R/A, THRU

Search across all available documentation for this part.

Active

Adam Tech

USB A 2.0, QUAD PORT, R/A, THRU

Technical Specifications

Parameters and characteristics for this part

Specification	USB-A-Q-RA

Connector Type	USB-A (USB TYPE-A), Stacked
Contact Finish	Gold
Current Rating (Amps)	1.5 A
Gender	Receptacle
Insulation Color	Black
Material Flammability Rating	UL94 V-0
Mounting Feature	Horizontal
Mounting Type	Through Hole, Right Angle
Number of Contacts	16
Number of Ports	4
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Shell/Shielding Material	Brass
Shielding	Shielded
Specifications	USB 2.0
Termination	Solder
Voltage - Rated	250 VAC

Part	Number of Contacts	Termination	Material Flammability Rating	Operating Temperature [Max]	Operating Temperature [Min]	Current Rating (Amps)	Connector Type	Specifications	Shielding	Voltage - Rated	Mounting Feature	Gender	Shell/Shielding Material	Mounting Type	Number of Ports	Contact Finish	Insulation Color	Number of Contacts [custom]
Adam Tech USB-A-Q-RA	16	Solder	UL94 V-0	85 °C	-55 °C	1.5 A	Stacked USB-A (USB TYPE-A)	USB 2.0	Shielded	250 VAC	Horizontal	Receptacle	Brass	Through Hole Right Angle	4	Gold	Black
Adam Tech USB-A-S-RA-SMT		Solder	UL94 V-0	60 °C	-20 C	1.5 A	USB-A (USB TYPE-A)	USB 2.0	Shielded	30 VAC	Horizontal	Receptacle	Copper Alloy	Surface Mount Right Angle Through Hole	1	Gold	Black	4
Adam Tech USB-AP-S-RA-SMT		Solder	UL94 V-0	60 °C	-20 C	1.5 A	USB-A (USB TYPE-A)	USB 2.0	Shielded	30 VAC	Horizontal	Plug	Steel (SPCC)	Surface Mount Right Angle Through Hole	1	Gold	Black	4
Adam Tech USB-A-S-VT		Solder	UL94 V-0	60 °C	-20 C	1.5 A	USB-A (USB TYPE-A)	USB 2.0	Shielded	30 VAC	Vertical	Receptacle	Brass	Through Hole	1	Gold	Black	4

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

USB-A (USB TYPE-A), Stacked USB 2.0 Receptacle Connector 16 Position Through Hole, Right Angle
