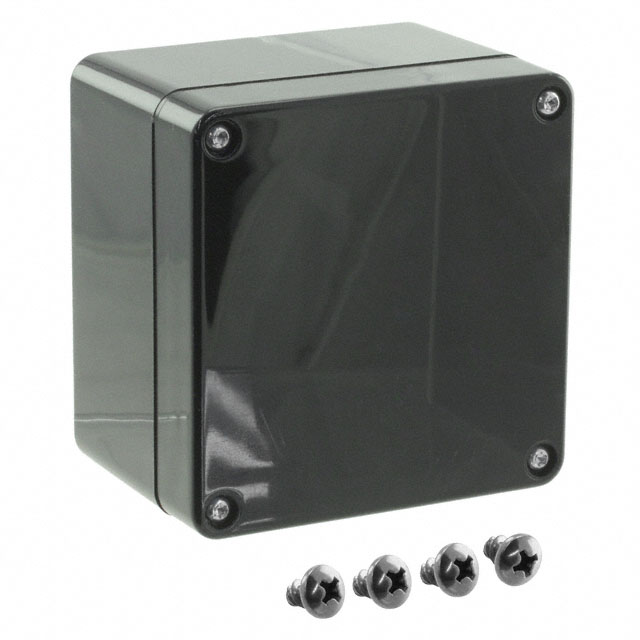

RB33P06B16B

Active

Serpac

BOX PLASTIC BLK 3.23"L X 3.15"W

Search across all available documentation for this part.

Active

Serpac

BOX PLASTIC BLK 3.23"L X 3.15"W

Technical Specifications

Parameters and characteristics for this part

Specification	RB33P06B16B

Area (L x W)	10.3 in²
Area (L x W)	66 cm²
Color	Black
Container Type	Box
Design	Cover Included
Height [z]	2.17 in
Height [z]	55.12 mm
Material	Plastic, Polycarbonate
Material Flammability Rating	UL94 V-0
Ratings	IP67, NEMA 4
Size / Dimension [x]	82.04 mm
Size / Dimension [x]	3.23 in
Size / Dimension [y]	80.01 mm
Size / Dimension [y]	3.15 in
Thickness	0.12 in
Thickness	3.05 mm

Part	Material	Ratings	Thickness	Thickness	Material Flammability Rating	Design	Color	Height [z]	Height [z]	Area (L x W)	Area (L x W)	Container Type	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]
Serpac RB33P06B16B	Plastic Polycarbonate	IP67 NEMA 4	0.12 in	3.05 mm	UL94 V-0	Cover Included	Black	2.17 in	55.12 mm	10.3 in²	66 cm²	Box	82.04 mm	3.23 in	80.01 mm	3.15 in
Serpac RB33P06B16C	Plastic Polycarbonate	IP67 NEMA 4	0.12 in	3.05 mm	UL94 V-0	Cover Included	Black Clear	2.17 in	55.12 mm	10.3 in²	66 cm²	Box	82.04 mm	3.23 in	80.01 mm	3.15 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Box Plastic, Polycarbonate Black Cover Included 3.230" L x 3.150" W (82.04mm x 80.01mm) X 2.170" (55.12mm)
