RB33P06B16C

Active

Serpac

BOX PLSTC CLR/BLK 3.23"LX3.15"W

Search across all available documentation for this part.

Active

Serpac

BOX PLSTC CLR/BLK 3.23"LX3.15"W

Technical Specifications

Parameters and characteristics for this part

Specification	RB33P06B16C

Area (L x W)	10.3 in²
Area (L x W)	66 cm²
Color	Black, Clear
Container Type	Box
Design	Cover Included
Height [z]	2.17 in
Height [z]	55.12 mm
Material	Plastic, Polycarbonate
Material Flammability Rating	UL94 V-0
Ratings	IP67, NEMA 4
Size / Dimension [x]	82.04 mm
Size / Dimension [x]	3.23 in
Size / Dimension [y]	80.01 mm
Size / Dimension [y]	3.15 in
Thickness	0.12 in
Thickness	3.05 mm

Part	Material	Ratings	Thickness	Thickness	Material Flammability Rating	Design	Color	Height [z]	Height [z]	Area (L x W)	Area (L x W)	Container Type	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]
Serpac RB33P06B16B	Plastic Polycarbonate	IP67 NEMA 4	0.12 in	3.05 mm	UL94 V-0	Cover Included	Black	2.17 in	55.12 mm	10.3 in²	66 cm²	Box	82.04 mm	3.23 in	80.01 mm	3.15 in
Serpac RB33P06B16C	Plastic Polycarbonate	IP67 NEMA 4	0.12 in	3.05 mm	UL94 V-0	Cover Included	Black Clear	2.17 in	55.12 mm	10.3 in²	66 cm²	Box	82.04 mm	3.23 in	80.01 mm	3.15 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 18.55

General part information

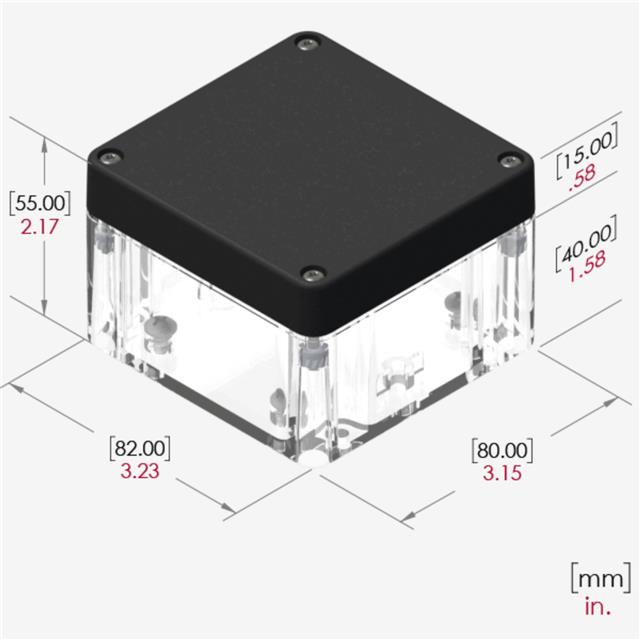

Box Plastic, Polycarbonate Clear, Black Cover/Door Cover Included 3.230" L x 3.150" W (82.04mm x 80.01mm) X 2.170" (55.12mm)

Technical documentation and resources

No documents available
