CSMS15CIC01

Active

Visual Communications Company - VCC

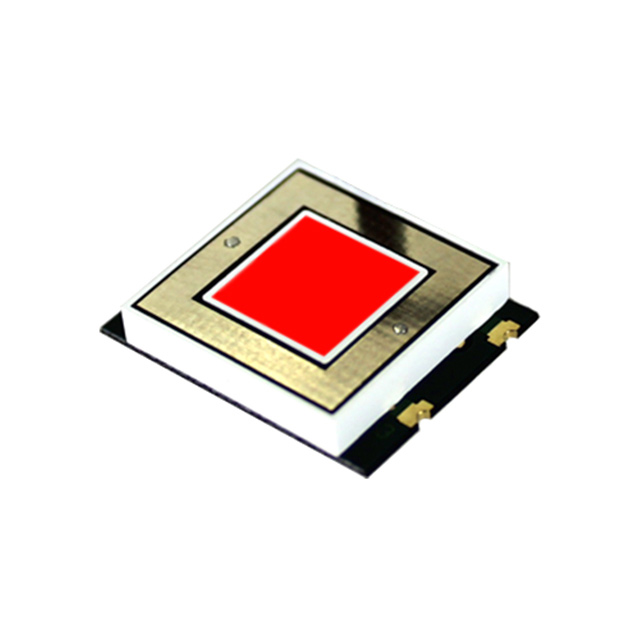

CSM DISPLAY SMT LED SQUARE 15MM

Search across all available documentation for this part.

Active

Visual Communications Company - VCC

CSM DISPLAY SMT LED SQUARE 15MM

Technical Specifications

Parameters and characteristics for this part

Specification	CSMS15CIC01

Actuator Marking	No Marking
Actuator Type	Button, Square
Color - Actuator/Cap	Clear
Illumination Type, Color	Red, LED
Illumination Voltage (Nominal)	2.8 VDC
Mounting Type	Surface Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-35 °C
Switch Function	Off-Mom
Termination Style	SMD (SMT) Tab
Type	Capacitive, Illuminated

Part	Switch Function	Operating Temperature [Min]	Operating Temperature [Max]	Illumination Voltage (Nominal)	Color - Actuator/Cap	Actuator Type	Actuator Marking	Mounting Type	Illumination Type, Color	Termination Style	Type
Visual Communications Company - VCC CSMS15CIC05	Off-Mom	-40 °C	105 ░C	3.2 VDC	Clear	Button Square	No Marking	Surface Mount	Green LED	SMD (SMT) Tab	Capacitive Illuminated
Visual Communications Company - VCC CSMS15CIC01	Off-Mom	-35 °C	85 °C	2.8 VDC	Clear	Button Square	No Marking	Surface Mount	LED Red	SMD (SMT) Tab	Capacitive Illuminated

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pushbutton Switch Capacitive, Illuminated Surface Mount
