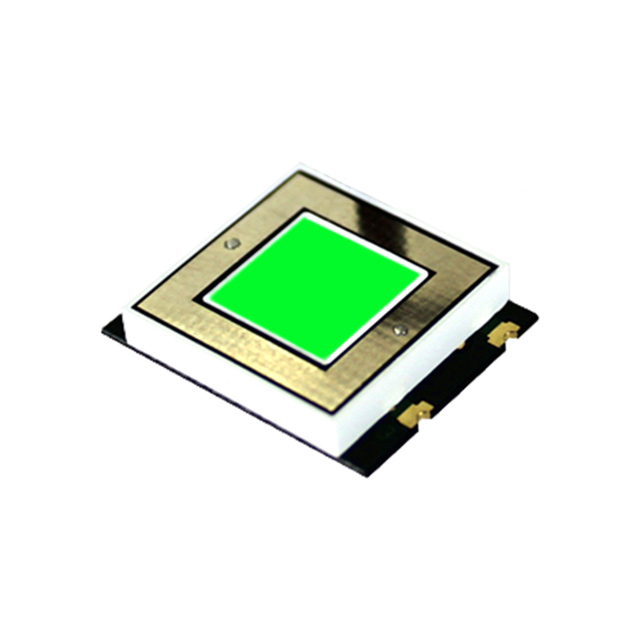

CSMS15CIC05
ActiveVisual Communications Company - VCC
CSM DISPLAY SMT LED SQUARE 15MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsCSM Series Flyer
CSMS15CIC05
ActiveVisual Communications Company - VCC
CSM DISPLAY SMT LED SQUARE 15MM
Deep-Dive with AI
DocumentsCSM Series Flyer
Technical Specifications
Parameters and characteristics for this part
| Specification | CSMS15CIC05 |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Button, Square |
| Color - Actuator/Cap | Clear |
| Illumination Type, Color | LED, Green |
| Illumination Voltage (Nominal) | 3.2 VDC |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Switch Function | Off-Mom |
| Termination Style | SMD (SMT) Tab |
| Type | Capacitive, Illuminated |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 7.65 | |
| 10 | $ 5.55 | |||
| 100 | $ 4.58 | |||
| 500 | $ 4.01 | |||
| Digi-Reel® | 1 | $ 7.65 | ||
| 10 | $ 5.55 | |||
| 100 | $ 4.58 | |||
| 500 | $ 4.01 | |||
| Tape & Reel (TR) | 1000 | $ 3.61 | ||
Description
General part information
CSMS15 Series
Pushbutton Switch Capacitive, Illuminated Surface Mount
