TLP521-4XSM

Active

Isocom Components 2004 LTD

OPTOISOLATOR 5.3KV 4CH TRANS

Search across all available documentation for this part.

Active

Isocom Components 2004 LTD

OPTOISOLATOR 5.3KV 4CH TRANS

Technical Specifications

Parameters and characteristics for this part

Specification	TLP521-4XSM

Current - DC Forward (If) (Max)	50 mA
Current Transfer Ratio (Max) [Max]	600 %
Current Transfer Ratio (Min) [Min]	50 %
Input Type	DC
Mounting Type	Surface Mount
Number of Channels	4
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-30 ░C
Output Type	1.81 mOhm

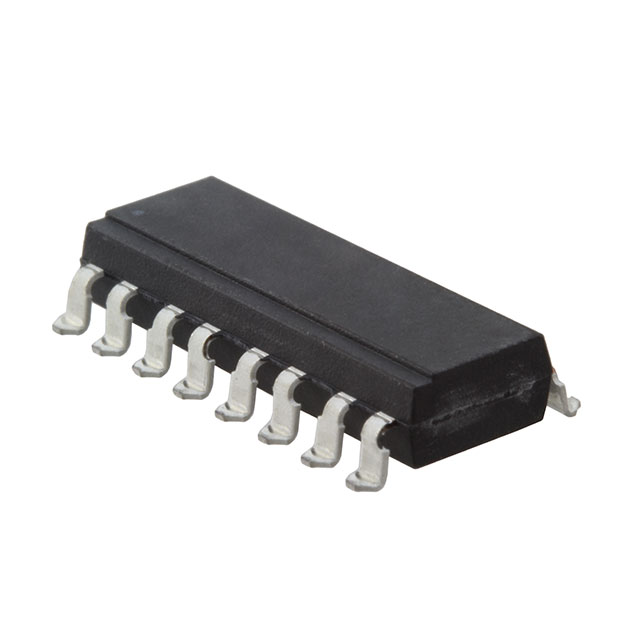

Package / Case	16-SMD, Gull Wing
Rise / Fall Time (Typ) [custom]	3 µs
Rise / Fall Time (Typ) [custom]	4 µs
Vce Saturation (Max) [Max]	400 mV
Voltage - Forward (Vf) (Typ)	1.15 V
Voltage - Isolation	5300 Vrms
Voltage - Output (Max) [Max]	55 V

Part	Input Type	Voltage - Output (Max) [Max]	Vce Saturation (Max) [Max]	Number of Channels [custom]	Supplier Device Package	Output Type	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Package / Case	Package / Case	Current Transfer Ratio (Max) [Max]	Current Transfer Ratio (Min) [Min]	Voltage - Isolation	Current - DC Forward (If) (Max)	Voltage - Forward (Vf) (Typ)	Rise / Fall Time (Typ) [custom]	Rise / Fall Time (Typ) [custom]	Mounting Type	Package / Case	Number of Channels
Isocom Components 2004 LTD TLP521-2X	DC	55 V	400 mV	2	8-DIP	1.81 mOhm	100 °C	-30 ░C	0.3 in	8-DIP	7.62 mm	600 %	50 %	5300 Vrms	50 mA	1.15 V	3 µs	4 µs	Through Hole
Isocom Components 2004 LTD TLP521-4GR	DC	55 V	400 mV		16-DIP	1.81 mOhm	100 °C	-30 ░C	10.16 mm	16-DIP				5300 Vrms	50 mA	1.15 V	3 µs	4 µs	Through Hole	10.16 mm	4
Isocom Components 2004 LTD TLP521-4XSM	DC	55 V	400 mV			1.81 mOhm	100 °C	-30 ░C		16-SMD Gull Wing		600 %	50 %	5300 Vrms	50 mA	1.15 V	3 µs	4 µs	Surface Mount		4
Isocom Components 2004 LTD TLP521-2XSM	DC	55 V	400 mV	2		1.81 mOhm	100 °C	-30 ░C				600 %	50 %	5300 Vrms	50 mA	1.15 V	3 µs	4 µs	Surface Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Optoisolator Transistor Output 5300Vrms 4 Channel
