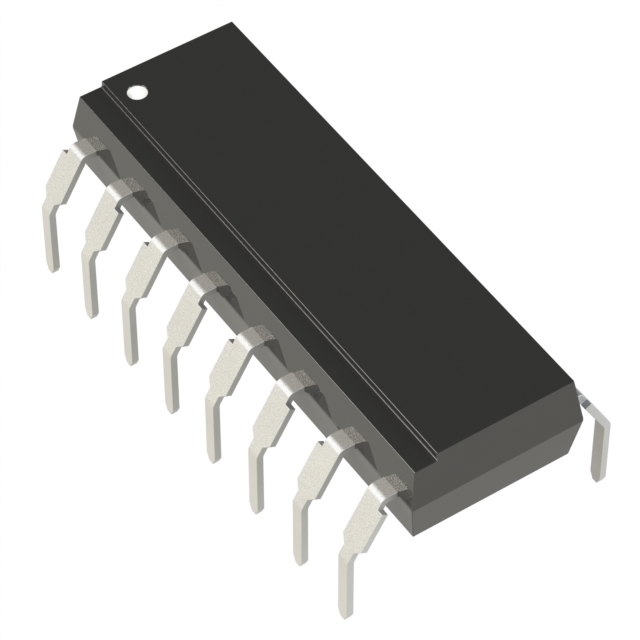

TLP521-4GR

Active

Isocom Components 2004 LTD

OPTOISO 5.3KV 4CH TRANS 16DIP

Search across all available documentation for this part.

Active

Isocom Components 2004 LTD

OPTOISO 5.3KV 4CH TRANS 16DIP

Technical Specifications

Parameters and characteristics for this part

Part	Input Type	Voltage - Output (Max) [Max]	Vce Saturation (Max) [Max]	Number of Channels [custom]	Supplier Device Package	Output Type	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Package / Case	Package / Case	Current Transfer Ratio (Max) [Max]	Current Transfer Ratio (Min) [Min]	Voltage - Isolation	Current - DC Forward (If) (Max)	Voltage - Forward (Vf) (Typ)	Rise / Fall Time (Typ) [custom]	Rise / Fall Time (Typ) [custom]	Mounting Type	Package / Case	Number of Channels
Isocom Components 2004 LTD TLP521-2X	DC	55 V	400 mV	2	8-DIP	1.81 mOhm	100 °C	-30 ░C	0.3 in	8-DIP	7.62 mm	600 %	50 %	5300 Vrms	50 mA	1.15 V	3 µs	4 µs	Through Hole
Isocom Components 2004 LTD TLP521-4GR	DC	55 V	400 mV		16-DIP	1.81 mOhm	100 °C	-30 ░C	10.16 mm	16-DIP				5300 Vrms	50 mA	1.15 V	3 µs	4 µs	Through Hole	10.16 mm	4
Isocom Components 2004 LTD TLP521-4XSM	DC	55 V	400 mV			1.81 mOhm	100 °C	-30 ░C		16-SMD Gull Wing		600 %	50 %	5300 Vrms	50 mA	1.15 V	3 µs	4 µs	Surface Mount		4
Isocom Components 2004 LTD TLP521-2XSM	DC	55 V	400 mV	2		1.81 mOhm	100 °C	-30 ░C				600 %	50 %	5300 Vrms	50 mA	1.15 V	3 µs	4 µs	Surface Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Optoisolator Transistor Output 5300Vrms 4 Channel 16-DIP
