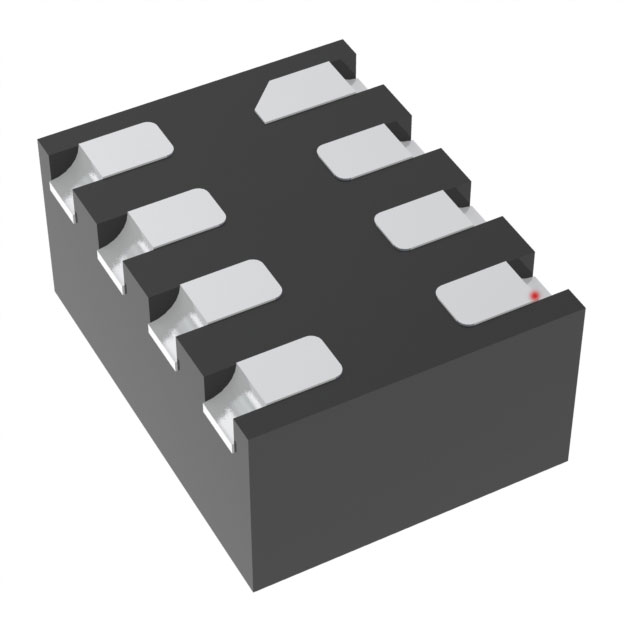

MPQ2179AGQHE-AEC1-Z

Active

MONOLITHIC POWER SYSTEMS (MPS)

IC REG BUCK ADJ 3A 8QFN

Search across all available documentation for this part.

Active

MONOLITHIC POWER SYSTEMS (MPS)

IC REG BUCK ADJ 3A 8QFN

Technical Specifications

Parameters and characteristics for this part

Specification	MPQ2179AGQHE-AEC1-Z

Current - Output	3 A
Frequency - Switching	2.4 MHz
Function	Step-Down
Mounting Type	Wettable Flank, Surface Mount
Number of Outputs	1
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-40 °C
Output Configuration	Positive
Output Type	Adjustable
Package / Case	8-VFDFN
Supplier Device Package	8-QFN (2x1.5)
Synchronous Rectifier	True
Topology	Buck
Voltage - Input (Max) [Max]	5.5 V
Voltage - Input (Min) [Min]	2.5 V
Voltage - Output (Max)	5 V
Voltage - Output (Min/Fixed)	0.6 V

Part	Frequency - Switching	Function	Voltage - Input (Max) [Max]	Grade	Voltage - Output (Max)	Current - Output	Number of Outputs	Voltage - Output (Min/Fixed)	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Output Type	Topology	Output Configuration	Package / Case	Supplier Device Package	Qualification	Voltage - Input (Min) [Min]	Voltage - Output	Board Type	Outputs and Type	Outputs and Type	Voltage - Input [Min]	Voltage - Input [Max]	Regulator Topology	Supplied Contents	Utilized IC / Part	Main Purpose
MONOLITHIC POWER SYSTEMS (MPS) MPQ2179GQHE-AEC1-P	2.4 MHz	Step-Down	5.5 V	Automotive	5 V	3 A	1	0.6 V	150 °C	-40 °C	Surface Mount	Adjustable	Buck	Positive	8-VFDFN	8-QFN (2x1.5)	AEC-Q100	2.5 V
MONOLITHIC POWER SYSTEMS (MPS) EVQ2179-LE-00A	2.4 MHz					3 A													1.2 V	Fully Populated	Non-Isolated	1	2.5 V	5.5 V	Buck	Board(s)	MPQ2179-AEC1	DC/DC Step Down
MONOLITHIC POWER SYSTEMS (MPS) MPQ2179AGQHE-AEC1-Z	2.4 MHz	Step-Down	5.5 V		5 V	3 A	1	0.6 V	150 °C	-40 °C	Surface Mount Wettable Flank	Adjustable	Buck	Positive	8-VFDFN	8-QFN (2x1.5)		2.5 V
MONOLITHIC POWER SYSTEMS (MPS) MPQ2179AGQHE-AEC1-P	2.4 MHz	Step-Down	5.5 V		5 V	3 A	1	0.6 V	150 °C	-40 °C	Surface Mount Wettable Flank	Adjustable	Buck	Positive	8-VFDFN	8-QFN (2x1.5)		2.5 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Buck Switching Regulator IC Positive Adjustable 0.6V 1 Output 3A 8-VFDFN

Technical documentation and resources
