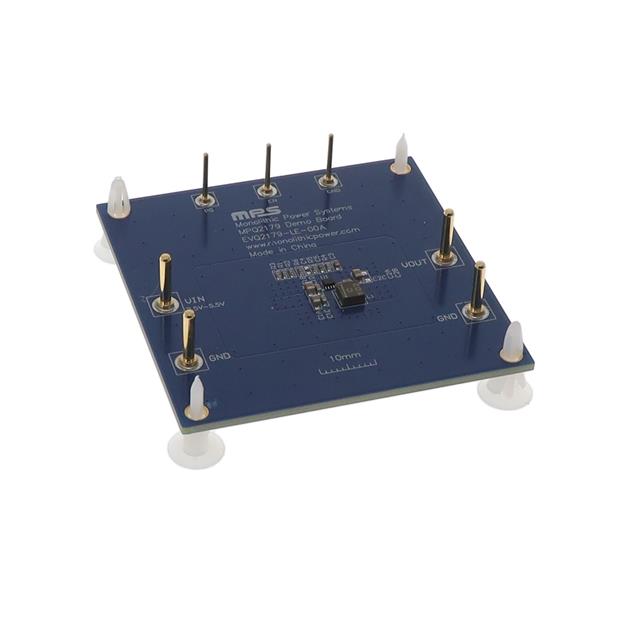

EVQ2179-LE-00A

Obsolete

MONOLITHIC POWER SYSTEMS (MPS)

EVAL BOARD FOR MPQ2179-AEC1

Search across all available documentation for this part.

Obsolete

MONOLITHIC POWER SYSTEMS (MPS)

EVAL BOARD FOR MPQ2179-AEC1

Technical Specifications

Parameters and characteristics for this part

Part	Frequency - Switching	Function	Voltage - Input (Max) [Max]	Grade	Voltage - Output (Max)	Current - Output	Number of Outputs	Voltage - Output (Min/Fixed)	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Output Type	Topology	Output Configuration	Package / Case	Supplier Device Package	Qualification	Voltage - Input (Min) [Min]	Voltage - Output	Board Type	Outputs and Type	Outputs and Type	Voltage - Input [Min]	Voltage - Input [Max]	Regulator Topology	Supplied Contents	Utilized IC / Part	Main Purpose
MONOLITHIC POWER SYSTEMS (MPS) MPQ2179GQHE-AEC1-P	2.4 MHz	Step-Down	5.5 V	Automotive	5 V	3 A	1	0.6 V	150 °C	-40 °C	Surface Mount	Adjustable	Buck	Positive	8-VFDFN	8-QFN (2x1.5)	AEC-Q100	2.5 V
MONOLITHIC POWER SYSTEMS (MPS) EVQ2179-LE-00A	2.4 MHz					3 A													1.2 V	Fully Populated	Non-Isolated	1	2.5 V	5.5 V	Buck	Board(s)	MPQ2179-AEC1	DC/DC Step Down
MONOLITHIC POWER SYSTEMS (MPS) MPQ2179AGQHE-AEC1-Z	2.4 MHz	Step-Down	5.5 V		5 V	3 A	1	0.6 V	150 °C	-40 °C	Surface Mount Wettable Flank	Adjustable	Buck	Positive	8-VFDFN	8-QFN (2x1.5)		2.5 V
MONOLITHIC POWER SYSTEMS (MPS) MPQ2179AGQHE-AEC1-P	2.4 MHz	Step-Down	5.5 V		5 V	3 A	1	0.6 V	150 °C	-40 °C	Surface Mount Wettable Flank	Adjustable	Buck	Positive	8-VFDFN	8-QFN (2x1.5)		2.5 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 50.00

General part information

MPQ2179-AEC1 - DC/DC, Step Down 1, Non-Isolated Outputs Evaluation Board
