Technical Specifications
Parameters and characteristics for this part
| Specification | STM8AF6289TCY |
|---|---|
| Connectivity | I2C, LINbus, UART/USART, SPI |
| Core Processor | STM8A |
| Core Size | 8-Bit |
| Data Converters [custom] | 10 |
| Data Converters [custom] | 16 |
| EEPROM Size | 2K x 8 |
| Grade | Automotive |
| Mounting Type | Surface Mount |
| Number of I/O | 52 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Oscillator Type | Internal |

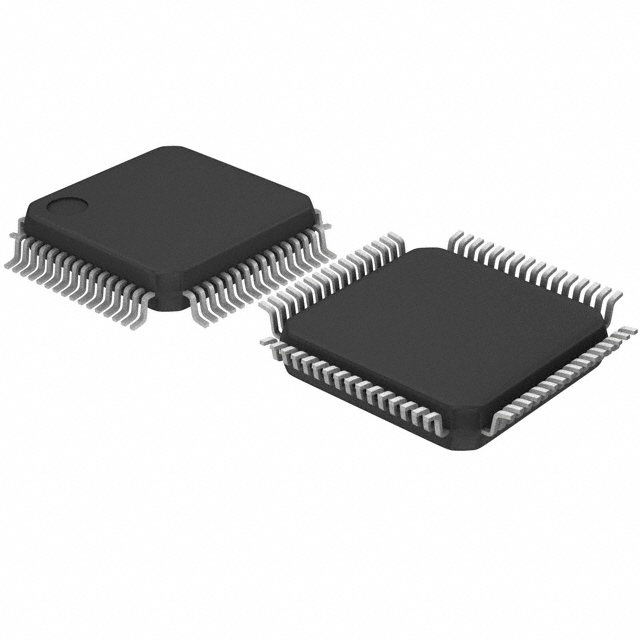

| Package / Case | 64-LQFP |
| Program Memory Size | 64 KB |
| Program Memory Type | FLASH |
| Qualification | AEC-Q100 |
| RAM Size | 6 K |
| Speed | 24 MHz |
| Supplier Device Package | 64-LQFP (10x10) |
| Voltage - Supply (Vcc/Vdd) [Max] | 5.5 V |
| Voltage - Supply (Vcc/Vdd) [Min] | 3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
STM8A-DISCOVERY Series
The STM8AF526x/8x/Ax and STM8AF6269/8x/Ax automotive 8-bit microcontrollers described in this datasheet offer from 32 Kbyte to 128 Kbyte of non volatile memory and integrated true data EEPROM. They are referred to as high density STM8A devices in STM8S series and STM8AF series 8-bit microcontrollers reference manual (RM0016).
The STM8AF52 series features a CAN interface.
All devices of the STM8A product line provide the following benefits: reduced system cost, performance and robustness, short development cycles, and product longevity.
