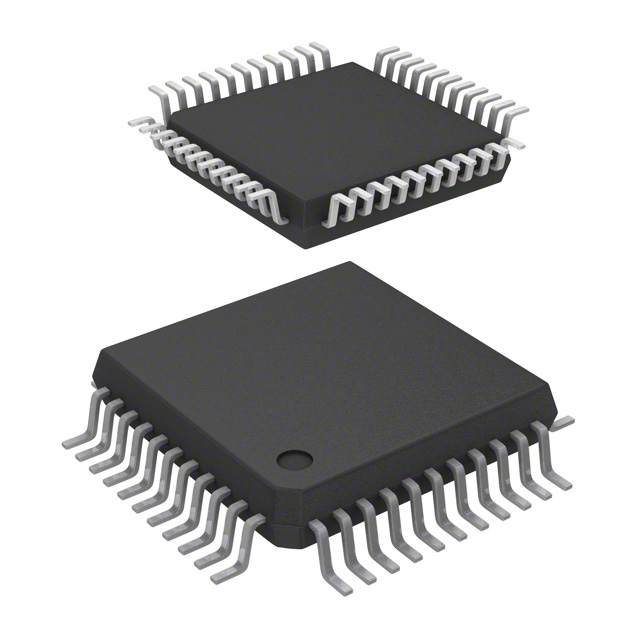

STM8S207S8T6C

Active

STMicroelectronics

MAINSTREAM PERFORMANCE LINE 8-BIT MCU WITH 64 KBYTES FLASH, 24 MHZ CPU, INTEGRATED EEPROM

Deep-Dive with AI

Search across all available documentation for this part.

Documents +57

STM8S207S8T6C

Active

STMicroelectronics

MAINSTREAM PERFORMANCE LINE 8-BIT MCU WITH 64 KBYTES FLASH, 24 MHZ CPU, INTEGRATED EEPROM

Deep-Dive with AI

Documents +57

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	STM8S207S8T6C

Connectivity	LINbus, I2C, IrDA, SPI, UART/USART
Core Processor	STM8
Core Size	8-Bit
Data Converters [custom]	9
Data Converters [custom]	10 b
EEPROM Size	1.5 K
Mounting Type	Surface Mount
Number of I/O	34
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Oscillator Type	Internal
Package / Case	44-LQFP
Program Memory Size	64 KB
Program Memory Type	FLASH
RAM Size	6 K
Speed	24 MHz
Voltage - Supply (Vcc/Vdd) [Max]	5.5 V
Voltage - Supply (Vcc/Vdd) [Min]	2.95 V

STM8A-DISCOVERY Series

Automotive 8-bit ultra-low-power MCU with 64 Kbytes Flash, LIN, RTC, LCD, data EEPROM, timers, USARTs, I2C, SPIs, ADC, DAC, COMPs, AES

...

Part	Speed	Supplier Device Package	Operating Temperature [Max]	Operating Temperature [Min]	Core Size	Program Memory Size	Number of I/O	Program Memory Type	Package / Case	RAM Size	Core Processor	Voltage - Supply (Vcc/Vdd) [Min]	Voltage - Supply (Vcc/Vdd) [Max]	Oscillator Type	Mounting Type	Peripherals	Connectivity	Data Converters	Data Converters	RAM Size	EEPROM Size	Data Converters [custom]	Data Converters [custom]	EEPROM Size	Grade	Qualification	Data Converters [custom]	Data Converters [custom]
STMicroelectronics STM8L151K4U6	16 MHz	32-UFQFPN (5x5)	85 °C	-40 °C	8-Bit	16 KB	30 I/O	FLASH	32-UFQFN Exposed Pad	2K x 8	STM8	1.8 V	3.6 V	Internal	Surface Mount	Brown-out Detect/Reset DMA IR POR PWM WDT	I2C IrDA SPI UART/USART	A/D 22x12b D/A 1x12b
STMicroelectronics STM8S105K6U3ATR	16 MHz	32-UFQFPN (5x5)	125 °C	-40 °C	8-Bit	32 KB	25	FLASH	32-UFQFN Exposed Pad	2K x 8	STM8	2.95 V	5.5 V	Internal	Surface Mount		I2C IrDA LINbus SPI UART/USART		7 10 b
STMicroelectronics STM8S207S8T6C	24 MHz		85 °C	-40 °C	8-Bit	64 KB	34	FLASH	44-LQFP		STM8	2.95 V	5.5 V	Internal	Surface Mount		I2C IrDA LINbus SPI UART/USART			6 K	1.5 K	9	10 b
STMicroelectronics STM8AF6289TCY	24 MHz	64-LQFP (10x10)	125 °C	-40 °C	8-Bit	64 KB	52	FLASH	64-LQFP		STM8A	3 V	5.5 V	Internal	Surface Mount		I2C LINbus SPI UART/USART			6 K		16		2K x 8	Automotive	AEC-Q100	10
STMicroelectronics STM8AF6246UAY	16 MHz	32-VFQFPN (5x5)	85 °C	-40 °C	8-Bit	16 KB	25	FLASH	32-VFQFN Exposed Pad	2K x 8	STM8A	3 V	5.5 V	Internal	Surface Mount		I2C LINbus SPI UART/USART		7 10 b					512 x 8
STMicroelectronics STM8S105K6U6ATR	16 MHz	32-UFQFPN (5x5)	85 °C	-40 °C	8-Bit	32 KB	25	FLASH	32-UFQFN Exposed Pad	2K x 8	STM8	2.95 V	5.5 V	Internal	Surface Mount		I2C IrDA LINbus SPI UART/USART		7 10 b
STMicroelectronics STM8AF6266TDX	16 MHz		150 °C	-40 °C	8-Bit	32 KB	25	FLASH	32-LQFP	2K x 8	STM8A	3 V	5.5 V	Internal	Surface Mount		I2C LINbus SPI UART/USART		7 10 b						Automotive	AEC-Q100
STMicroelectronics STM8L101K3T6	16 MHz	32-LQFP (7x7)	85 °C	-40 °C	8-Bit		30 I/O	FLASH	32-LQFP		STM8	1.65 V	3.6 V	Internal	Surface Mount	Infrared POR PWM WDT	I2C SPI UART/USART			1.5 K				2K x 8
STMicroelectronics STM8L151K3U6	16 MHz	32-UFQFPN (5x5)	85 °C	-40 °C	8-Bit		30 I/O	FLASH	32-UFQFN Exposed Pad		STM8	1.8 V	3.6 V	Internal	Surface Mount	Brown-out Detect/Reset DMA IR POR PWM WDT	I2C IrDA SPI UART/USART			1 K		23		256 x 8				12 b
STMicroelectronics STM8L152C6U6	16 MHz	48-UFQFPN (7x7)	85 °C	-40 °C	8-Bit	32 KB	41	FLASH	48-UFQFN Exposed Pad	2K x 8	STM8	1.8 V	3.6 V	Internal	Surface Mount	Brown-out Detect/Reset DMA IR LCD POR PWM WDT	I2C IrDA SPI UART/USART	A/D 25x12b D/A 1x12b

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 3.86
		10	$ 3.47
		25	$ 3.28
		160	$ 2.84
		320	$ 2.69
		480	$ 2.42
		960	$ 2.04
		2400	$ 1.94
		4960	$ 1.86

Description

General part information

STM8A-DISCOVERY Series

The STM8AF526x/8x/Ax and STM8AF6269/8x/Ax automotive 8-bit microcontrollers described in this datasheet offer from 32 Kbyte to 128 Kbyte of non volatile memory and integrated true data EEPROM. They are referred to as high density STM8A devices in STM8S series and STM8AF series 8-bit microcontrollers reference manual (RM0016).

The STM8AF52 series features a CAN interface.

All devices of the STM8A product line provide the following benefits: reduced system cost, performance and robustness, short development cycles, and product longevity.
