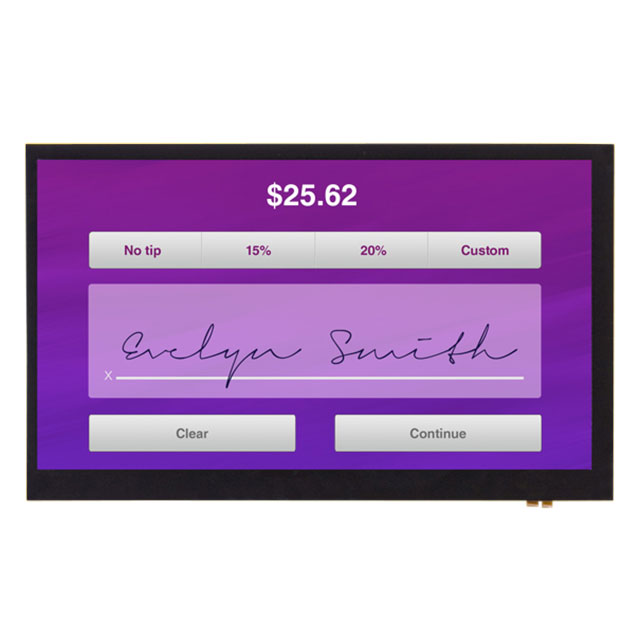

DT070BTFT-HB

Obsolete

Displaytech

DISPLAY MODULE

Search across all available documentation for this part.

Obsolete

Displaytech

DISPLAY MODULE

Technical Specifications

Parameters and characteristics for this part

Part	Display Mode	Touchscreen	Viewing Area [z]	Viewing Area [y]	Graphics Color	Backlight	Display Type	Dot Pixels [x]	Dot Pixels [y]	Diagonal Screen Size	Diagonal Screen Size	Interface	Interface	Dot Pixels	Dot Pitch [y]	Dot Pitch [x]	Viewing Area [x]
Displaytech DT070BTFT-PTS1	Transmissive	Capacitive	85.92 mm	154.21 mm	Blue Green Red	LED	TFT - Color	1024	600 pixels	177.8 mm	7 in	LVDS
Displaytech DT070BTFT-HB	Transmissive		85.92 mm	154.21 mm	Blue Green Red	LED	TFT - Color	1024	600 pixels	177.8 mm	7 in	LVDS
Displaytech DT070CTFT	Transmissive			85.92 mm	Blue Green Red	LED	TFT - Color	800	480	177.8 mm	7 in	Parallel	24 Bit	WVGA	0.18 mm	0.19 mm	154.08 mm
Displaytech DT070BTFT-TS	Transmissive	Resistive	85.92 mm	154.21 mm	Blue Green Red	LED	TFT - Color	1024	600 pixels	177.8 mm	7 in	LVDS
Displaytech DT070CTFT-TS	Transmissive	Resistive		85.92 mm	Blue Green Red	LED	TFT - Color	800	480	177.8 mm	7 in	Parallel	24 Bit	WVGA	0.18 mm	0.19 mm	154.08 mm
Displaytech DT070CTFT-PTS	Transmissive	Capacitive		85.92 mm	Blue Green Red	LED	TFT - Color	800	480	177.8 mm	7 in	Parallel	24 Bit	WVGA	0.18 mm	0.19 mm	154.08 mm
Displaytech DT070BTFT	Transmissive		85.92 mm	154.21 mm	Blue Green Red	LED	TFT - Color	1024	600 pixels	177.8 mm	7 in	LVDS

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Graphic LCD Display Module Transmissive Red, Green, Blue (RGB) TFT - Color LVDS 7" (177.80mm) 1024 x 600

Technical documentation and resources
