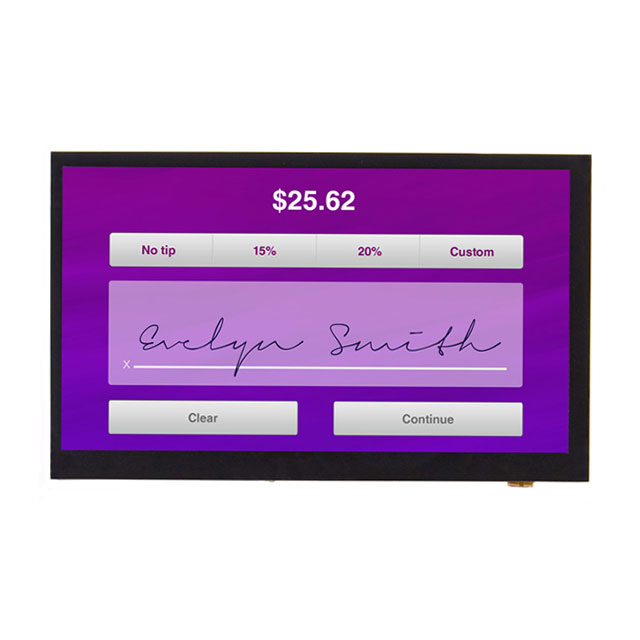

DT070BTFT-PTS1

Obsolete

Displaytech

LCD DISP TFT 7.0" 1024X600 IPS

Search across all available documentation for this part.

Obsolete

Displaytech

LCD DISP TFT 7.0" 1024X600 IPS

Technical Specifications

Parameters and characteristics for this part

Part	Display Mode	Touchscreen	Viewing Area [z]	Viewing Area [y]	Graphics Color	Backlight	Display Type	Dot Pixels [x]	Dot Pixels [y]	Diagonal Screen Size	Diagonal Screen Size	Interface	Interface	Dot Pixels	Dot Pitch [y]	Dot Pitch [x]	Viewing Area [x]
Displaytech DT070BTFT-PTS1	Transmissive	Capacitive	85.92 mm	154.21 mm	Blue Green Red	LED	TFT - Color	1024	600 pixels	177.8 mm	7 in	LVDS
Displaytech DT070BTFT-HB	Transmissive		85.92 mm	154.21 mm	Blue Green Red	LED	TFT - Color	1024	600 pixels	177.8 mm	7 in	LVDS
Displaytech DT070CTFT	Transmissive			85.92 mm	Blue Green Red	LED	TFT - Color	800	480	177.8 mm	7 in	Parallel	24 Bit	WVGA	0.18 mm	0.19 mm	154.08 mm
Displaytech DT070BTFT-TS	Transmissive	Resistive	85.92 mm	154.21 mm	Blue Green Red	LED	TFT - Color	1024	600 pixels	177.8 mm	7 in	LVDS
Displaytech DT070CTFT-TS	Transmissive	Resistive		85.92 mm	Blue Green Red	LED	TFT - Color	800	480	177.8 mm	7 in	Parallel	24 Bit	WVGA	0.18 mm	0.19 mm	154.08 mm
Displaytech DT070CTFT-PTS	Transmissive	Capacitive		85.92 mm	Blue Green Red	LED	TFT - Color	800	480	177.8 mm	7 in	Parallel	24 Bit	WVGA	0.18 mm	0.19 mm	154.08 mm
Displaytech DT070BTFT	Transmissive		85.92 mm	154.21 mm	Blue Green Red	LED	TFT - Color	1024	600 pixels	177.8 mm	7 in	LVDS

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Capacitive Graphic LCD Display Module Transmissive Red, Green, Blue (RGB) TFT - Color LVDS 7" (177.80mm) 1024 x 600

Technical documentation and resources

No documents available
