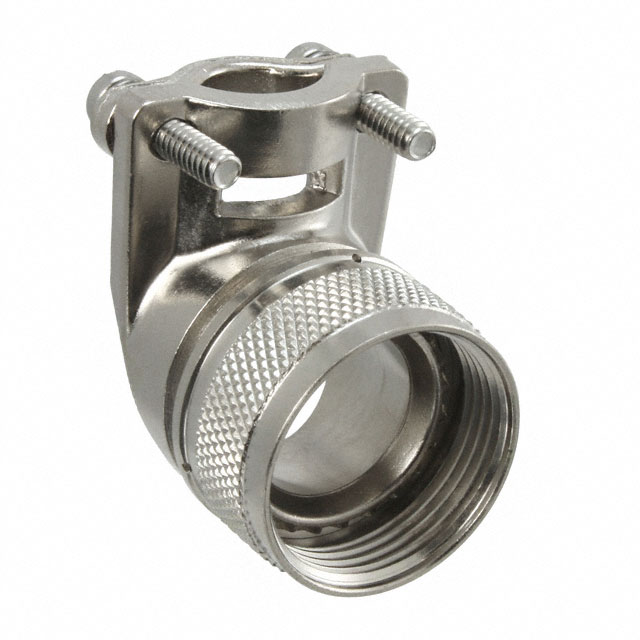

M85049/51-1-14N
ActiveAmphenol Interconnect India
CONN CABLE CLAMP SZ12 14 SILVER
Deep-Dive with AI
Search across all available documentation for this part.
M85049/51-1-14N
ActiveAmphenol Interconnect India
CONN CABLE CLAMP SZ12 14 SILVER
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | M85049/51-1-14N |
|---|---|
| Cable Exit | 90 ° |
| Cable Opening [Max] [custom] | 12.09 mm |
| Cable Opening [Max] [custom] | 0.476 in |
| Cable Opening [Min] [custom] | 0.351 in |
| Cable Opening [Min] [custom] | 8.92 mm |
| Color | Silver |
| Diameter - Outside [diameter] | 0.984 " |
| Diameter - Outside [diameter] | 25 mm |
| Features | Clamp Screws |
| For Use With/Related Products | MIL-DTL-26482 Series II, MIL-DTL-5015, MIL-DTL-83723 Series III |
| Material | Aluminum Alloy |
| Plating | Electroless Nickel |
| Shell Size - Insert | 12, 14 |
| Shielding | Unshielded |
| Type | Cable Clamp |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 16.62 | |
| 25 | $ 14.17 | |||
| 100 | $ 12.84 | |||
Description
General part information
M85049/51 Series
Silver Connector Cable Clamp 12, 14
Documents
Technical documentation and resources
No documents available
