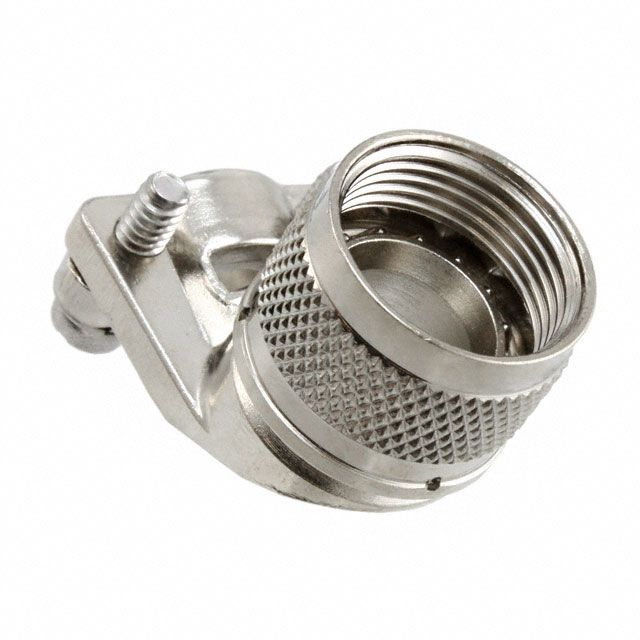

M85049/51-1-10N

Active

Amphenol Interconnect India

CONN CABLE CLAMP SZ10 SILVER

Search across all available documentation for this part.

Active

Amphenol Interconnect India

CONN CABLE CLAMP SZ10 SILVER

Technical Specifications

Parameters and characteristics for this part

Specification	M85049/51-1-10N

Cable Exit	90 °
Cable Opening [diameter]	7.26 mm, 4.75 mm
Cable Opening [diameter]	0.187 in, 0.286 in
Color	Silver
Diameter - Outside [diameter]	18.64 mm
Diameter - Outside [diameter]	0.734 in
Features	Clamp Screws
For Use With/Related Products	MIL-DTL-26482 Series II, MIL-DTL-5015, MIL-DTL-83723 Series III
Material	Aluminum Alloy
Plating	Electroless Nickel
Shell Size - Insert	10
Shielding	Unshielded
Type	Cable Clamp

Part	Cable Exit	For Use With/Related Products	Color	Shielding	Plating	Material	Type	Diameter - Outside [diameter]	Diameter - Outside [diameter]	Shell Size - Insert	Features	Cable Opening [diameter]	Cable Opening [diameter]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [custom]	Shell Size - Insert
Amphenol Interconnect India M85049/51-1-10N	90 °	MIL-DTL-26482 Series II MIL-DTL-5015 MIL-DTL-83723 Series III	Silver	Unshielded	Electroless Nickel	Aluminum Alloy	Cable Clamp	18.64 mm	0.734 in	10	Clamp Screws	4.75 mm 7.26 mm	0.187 in 0.286 in
Amphenol Interconnect India M85049/51-1-20W	90 °	MIL-DTL-26482 Series II MIL-DTL-5015 MIL-DTL-83723 Series III	Olive Drab	Unshielded	Cadmium	Aluminum Alloy	Cable Clamp	34.16 mm	1.345 "	20 37	Clamp Screws			0.581 in	0.831 in	14.76 mm	21.11 mm
Amphenol Interconnect India M85049/51-1-8W	90 °	MIL-DTL-26482 Series II MIL-DTL-5015 MIL-DTL-83723 Series III	Olive Drab	Unshielded	Cadmium	Aluminum Alloy	Cable Clamp	15.67 mm	0.617 in	8	Clamp Screws							5.18 mm	0.125 in	0.204 in	3.18 mm
Amphenol Interconnect India M85049/51-1-14N	90 °	MIL-DTL-26482 Series II MIL-DTL-5015 MIL-DTL-83723 Series III	Silver	Unshielded	Electroless Nickel	Aluminum Alloy	Cable Clamp	25 mm	0.984 "		Clamp Screws			0.351 in	0.476 in	8.92 mm						12.09 mm	12 14

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Silver Connector Cable Clamp 10
