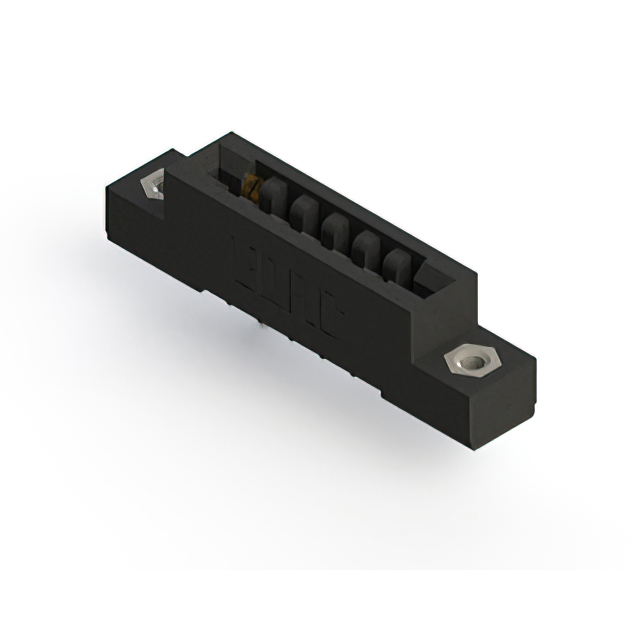

357-006-541-108

Active

EDAC Inc.

CARD EDGE CONNECTOR ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

357-006-541-108

Active

EDAC Inc.

CARD EDGE CONNECTOR ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	357-006-541-108

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Black
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Semi Bellows
Flange Feature	Flush Mount, Threaded Insert, 4-40, Top Opening
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Through Hole
Number of Positions	12
Number of Positions/Bay/Row [custom]	6
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.156 in
Pitch [x]	3.96 mm
Read Out	Dual
Termination	Wire Wrap
Termination Rows	1

357-006 Series

...

Part	Color	Contact Material	Gender	Contact Type	Operating Temperature [Min]	Operating Temperature [Max]	Read Out	Termination	Pitch [x]	Pitch [x]	Contact Finish Thickness	Contact Finish Thickness	Number of Positions	Flange Feature	Number of Positions/Bay/Row [custom]	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Mounting Type	Contact Finish	Number of Rows	Material - Insulation	Termination Rows	Card Type	Flange Feature [diameter]	Flange Feature [diameter]	Features
EDAC Inc. 357-006-553-108	Black	Copper Alloy	Female	Semi Bellows	-40 °C	105 ░C	Dual	Solder	0.156 in	3.96 mm	10 Áin	0.25 Ám	12	4-40 Flush Mount Threaded Insert Top Opening	6	1.37 mm	0.054 "	1.78 mm	0.07 in	Through Hole Right Angle	Gold	2	Polyester Thermoplastic	1	Non Specified - Dual Edge
EDAC Inc. 357-006-521-107	Black	Copper Alloy	Female	Semi Bellows	-40 °C	105 ░C	Dual	Solder	0.156 in	3.96 mm	10 Áin	0.25 Ám	12	Flush Mount M3 Threaded Insert Top Opening	6	1.37 mm	0.054 "	1.78 mm	0.07 in	Through Hole	Gold	2	Polyester Thermoplastic	1	Non Specified - Dual Edge
EDAC Inc. 357-006-445-104	Black	Copper Alloy	Female	Semi Bellows	-40 °C	105 ░C	Single	Wire Wrap	0.156 in	3.96 mm			6	Flush Mount Top Opening Unthreaded	6	1.37 mm	0.054 "	1.78 mm	0.07 in	Through Hole	Tin	1	Polyester Thermoplastic	1	Non Specified - Single Edge	3.96 mm	0.156 in
EDAC Inc. 357-006-541-108	Black	Copper Alloy	Female	Semi Bellows	-40 °C	105 ░C	Dual	Wire Wrap	0.156 in	3.96 mm	10 Áin	0.25 Ám	12	4-40 Flush Mount Threaded Insert Top Opening	6	1.37 mm	0.054 "	1.78 mm	0.07 in	Through Hole	Gold	2	Polyester Thermoplastic	1	Non Specified - Dual Edge
EDAC Inc. 357-006-431-178	Black	Copper Alloy	Female	Semi Bellows	-40 °C	105 ░C	Single	Solder	0.156 in	3.96 mm			6	4-40 Flush Mount Threaded Insert Top Opening	6	1.37 mm	0.054 "	1.78 mm	0.07 in	Through Hole	Tin	1	Polyester Thermoplastic	1	Non Specified - Single Edge			Card Guides
EDAC Inc. 357-006-554-108	Black	Copper Alloy	Female	Semi Bellows	-40 °C	105 ░C	Dual	Solder Eyelet(s)	0.156 in	3.96 mm	10 Áin	0.25 Ám	12	4-40 Flush Mount Threaded Insert Top Opening	6	1.37 mm	0.054 "	1.78 mm	0.07 in	Surface Mount	Gold	2	Polyester Thermoplastic	1	Non Specified - Dual Edge
EDAC Inc. 357-006-421-112	Black	Copper Alloy	Female	Semi Bellows	-40 °C	105 ░C	Dual	Solder	0.156 in	3.96 mm			12	Flush Mount Side Opening Unthreaded	6	1.37 mm	0.054 "	1.78 mm	0.07 in	Through Hole	Tin	2	Polyester Thermoplastic	1	Non Specified - Dual Edge	3.25 mm	0.128 "
EDAC Inc. 357-006-527-112	Black	Copper Alloy	Female	Semi Bellows	-40 °C	105 ░C	Single	Solder	0.156 in	3.96 mm	10 Áin	0.25 Ám	6	Flush Mount Side Opening Unthreaded	6	1.37 mm	0.054 "	1.78 mm	0.07 in	Through Hole	Gold	1	Polyester Thermoplastic	1	Non Specified - Single Edge	3.25 mm	0.128 "
EDAC Inc. 357-006-447-178	Black	Copper Alloy	Female	Semi Bellows	-40 °C	105 ░C	Single	Wire Wrap	0.156 in	3.96 mm			6	4-40 Flush Mount Threaded Insert Top Opening	6	1.37 mm	0.054 "	1.78 mm	0.07 in	Through Hole	Tin	1	Polyester Thermoplastic	1	Non Specified - Single Edge			Card Guides
EDAC Inc. 357-006-447-107	Black	Copper Alloy	Female	Semi Bellows	-40 °C	105 ░C	Single	Wire Wrap	0.156 in	3.96 mm			6	Flush Mount M3 Threaded Insert Top Opening	6	1.37 mm	0.054 "	1.78 mm	0.07 in	Through Hole	Tin	1	Polyester Thermoplastic	1	Non Specified - Single Edge

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	25	$ 14.53
Newark	Each	1	$ 14.94
		100	$ 9.17
		250	$ 8.36
		500	$ 7.75
		1000	$ 6.12

Description

General part information

357-006 Series

12 Position Female Connector Non Specified - Dual Edge Gold 0.156" (3.96mm) Black
