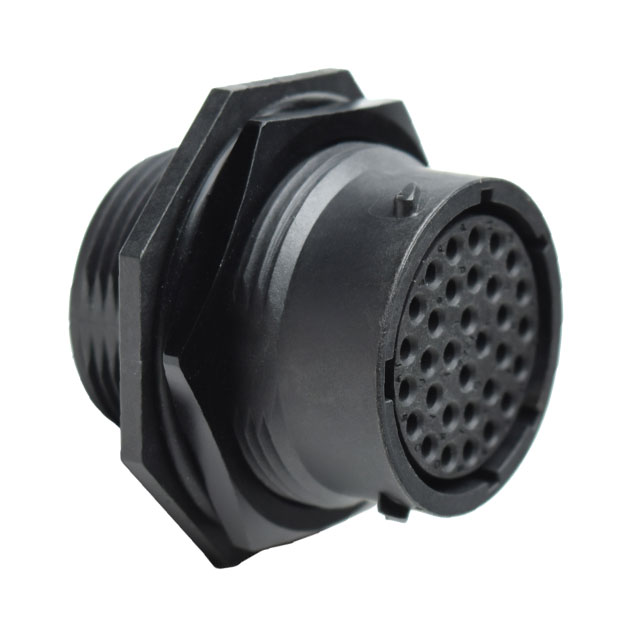

RTS718N32S03

Active

Amphenol Sine Systems Corp

CONN RCPT HSG FMALE 32POS PNL MT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet ecomate-Family-Flyer-2019 +1

RTS718N32S03

Active

Amphenol Sine Systems Corp

CONN RCPT HSG FMALE 32POS PNL MT

Deep-Dive with AI

DocumentsDatasheet ecomate-Family-Flyer-2019 +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RTS718N32S03

Connector Type	Receptacle Housing
Contact Shape	Circular
Contact Size	20
Contact Type	Crimp
Fastening Type	Bayonet Lock
Housing Color	Black
Includes	1 O-Ring, 1 Gasket, 1 Nut, 1 Connector
Ingress Protection	IP69K, IP67
Insert Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Feature	Bulkhead - Front Side Nut
Note	Contacts Not Included
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Orientation	N
Shell Size - Insert [Max]	32
Shell Size - Insert [Min]	18
Shielding	Unshielded
Type	For Female Sockets

RTS718 Series

Part	Orientation	Shell Size - Insert [Min] [custom]	Shell Size - Insert [Max] [custom]	Contact Type	Number of Positions	Mounting Feature	Insert Material	Type	Note	Connector Type	Housing Color	Contact Size	Operating Temperature [Max]	Operating Temperature [Min]	Ingress Protection	Shielding	Contact Shape	Material Flammability Rating	Includes	Fastening Type	Features	Shell Size - Insert	Shell Size - Insert [Max]	Shell Size - Insert [Min]
Amphenol Sine Systems Corp RTS718N23S03	N	18	23	Crimp	23	Bulkhead - Front Side Nut	Thermoplastic	For Female Sockets	Contacts Not Included	Receptacle Housing	Black	16	125 °C	-40 °C	IP67 IP69K	Unshielded	Circular	UL94 V-0	1 Connector 1 Gasket 1 Nut 1 O-Ring	Bayonet Lock
Amphenol Sine Systems Corp RTS718N23PHEC03	N	18	23	Crimp	23	Bulkhead - Front Side Nut	Thermoplastic	For Male Pins	Contacts Not Included	Receptacle Housing	Black	16	125 °C	-40 °C	IP67 IP69K	Unshielded	Circular	UL94 V-0	1 Backshell 1 Connector 1 Gasket 1 O-Ring 1 Ring 1 Seal	Bayonet Lock	Backshell
Amphenol Sine Systems Corp RTS718N8P03	N			Crimp	8	Bulkhead - Front Side Nut	Thermoplastic	For Male Pins	Contacts Not Included	Receptacle Housing	Black	2.5 mm	125 °C	-40 °C	IP67 IP69K	Unshielded	Circular	UL94 V-0	1 Connector 1 Gasket 1 Nut 1 O-Ring	Bayonet Lock		18-8
Amphenol Sine Systems Corp RTS718N32S03	N			Crimp		Bulkhead - Front Side Nut	Thermoplastic	For Female Sockets	Contacts Not Included	Receptacle Housing	Black	20	125 °C	-40 °C	IP67 IP69K	Unshielded	Circular	UL94 V-0	1 Connector 1 Gasket 1 Nut 1 O-Ring	Bayonet Lock			32	18
Amphenol Sine Systems Corp RTS718N23P03	N	18	23	Crimp	23	Bulkhead - Front Side Nut	Thermoplastic	For Male Pins	Contacts Not Included	Receptacle Housing	Black	16	125 °C	-40 °C	IP67 IP69K	Unshielded	Circular	UL94 V-0	1 Connector 1 Gasket 1 Nut 1 O-Ring	Bayonet Lock

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 10.89
		10	$ 9.65
		25	$ 9.28
		50	$ 8.91
		200	$ 8.71

Description

General part information

RTS718 Series

32 Position Circular Connector Receptacle Housing Panel Mount

Documents

Technical documentation and resources

Datasheet

ecomate-Family-Flyer-2019

Datasheet

Eco|mate® Aquarius™ Flyer

Datasheet
