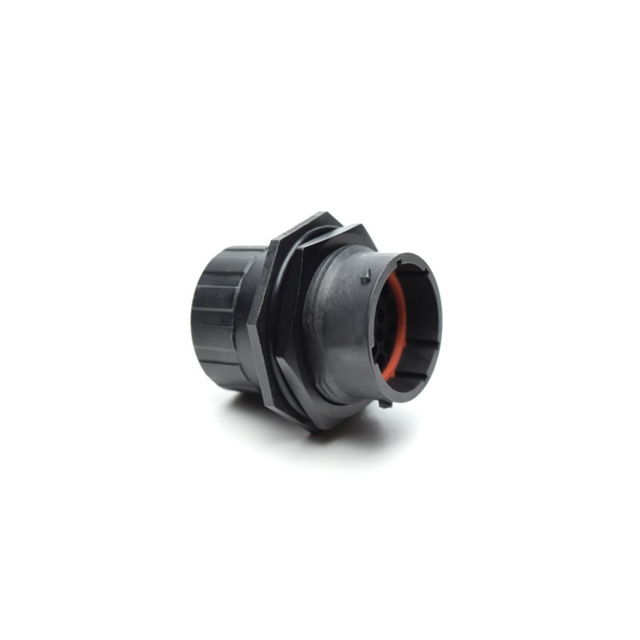

RTS718N23PHEC03
ActiveAmphenol Sine Systems Corp
CONN RCPT HSG MALE 23POS PNL MT
Deep-Dive with AI
Search across all available documentation for this part.
RTS718N23PHEC03
ActiveAmphenol Sine Systems Corp
CONN RCPT HSG MALE 23POS PNL MT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | RTS718N23PHEC03 |
|---|---|
| Connector Type | Receptacle Housing |
| Contact Shape | Circular |
| Contact Size | 16 |
| Contact Type | Crimp |
| Fastening Type | Bayonet Lock |
| Features | Backshell |
| Housing Color | Black |
| Includes | 1 Backshell, 1 Seal, 1 Connector, 1 Ring, 1 Gasket, 1 O-Ring |
| Ingress Protection | IP69K, IP67 |
| Insert Material | Thermoplastic |
| Material Flammability Rating | UL94 V-0 |
| Mounting Feature | Bulkhead - Front Side Nut |
| Note | Contacts Not Included |
| Number of Positions | 23 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Orientation | N |
| Shell Size - Insert [Max] [custom] | 23 |
| Shell Size - Insert [Min] [custom] | 18 |
| Shielding | Unshielded |
| Type | For Male Pins |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 9.26 | |
| 10 | $ 8.33 | |||
| 25 | $ 7.85 | |||
| 50 | $ 7.65 | |||
Description
General part information
RTS718 Series
23 Position Circular Connector Receptacle Housing Panel Mount Backshell
